Control Arm Bushing: Service and Repair

^ Tools Required:
- J 29792 Lower Control Arm Front Bushing Service Set
- J 41211 Lower Control Arm Rear Vertical Bushing Service Set
- Or Equivalents

REMOVE OR DISCONNECT
1. Lower control arm.

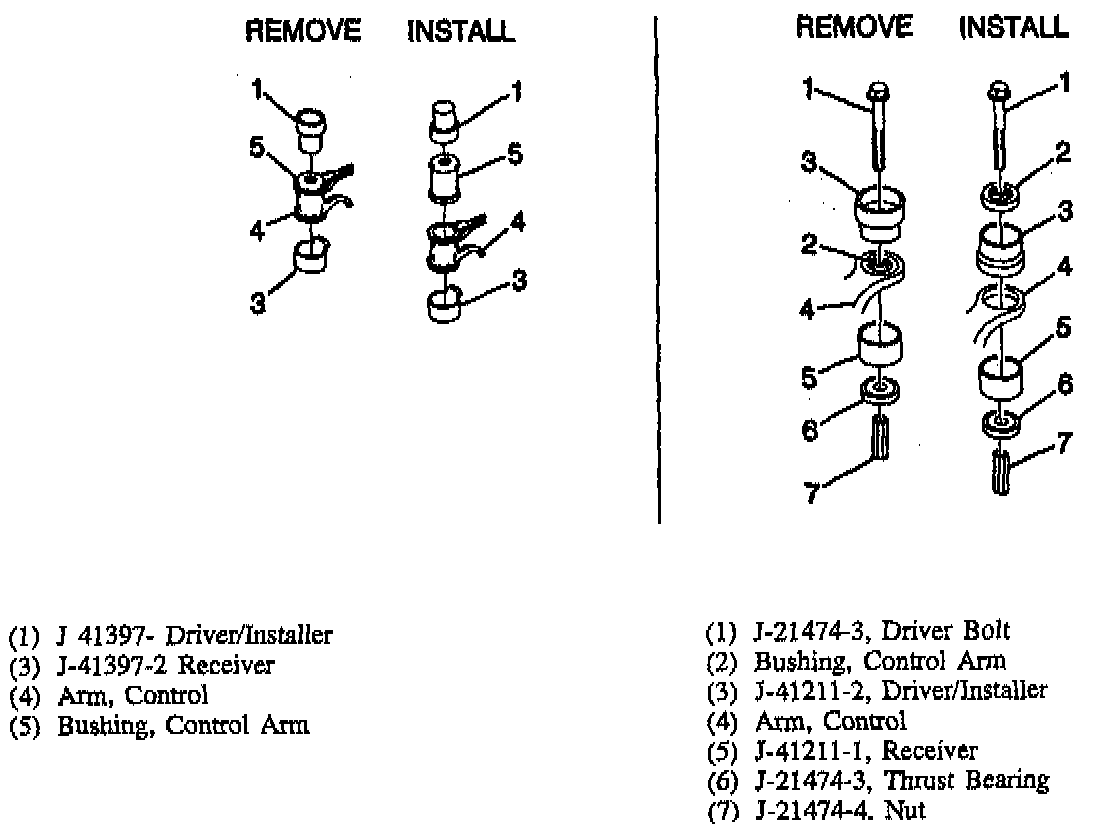

^ Install bushing removal tools.
^ Coat threads of tool J 29792 with an extreme pressure lubricant.
2. Lower control arm bushings.

INSTALL OR CONNECT
1. Install bushing installation tools.
2. Lower control arm bushings.
^ To ease installation, coat outer easing of new bushing with a lubricant.
3. Lower control arm.
