Pinout Description

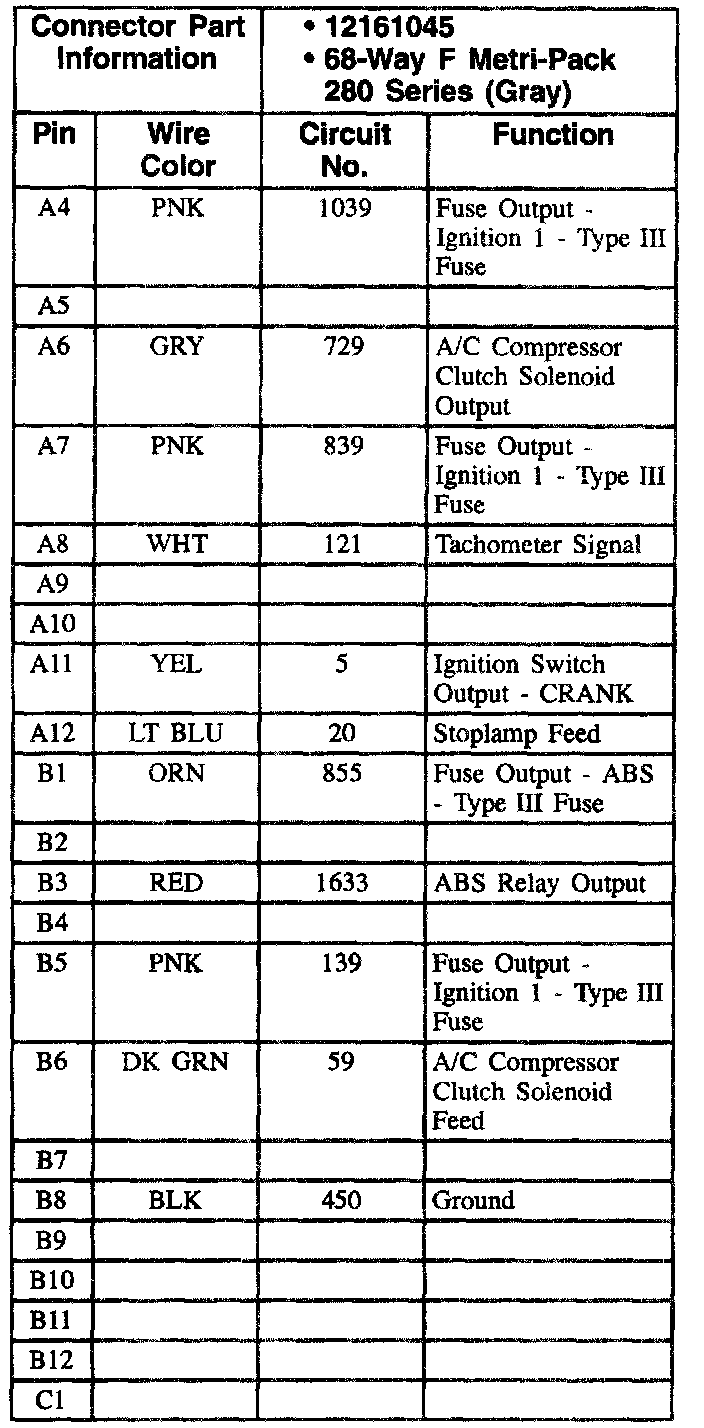

Underhood Bussed Electrical Center: C1 (Part 1 Of 5):

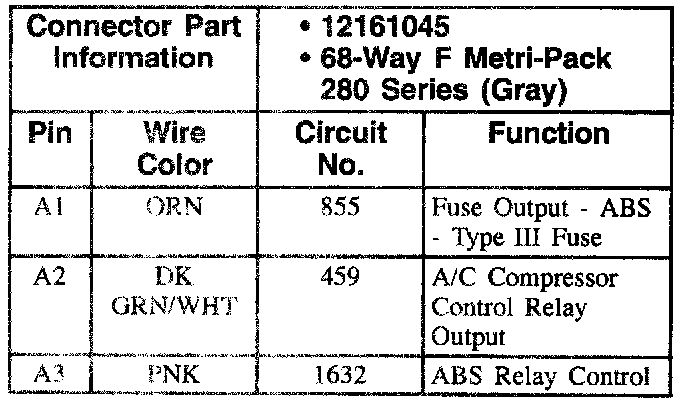

Underhood Bussed Electrical Center: C1 (Part 2 Of 5):

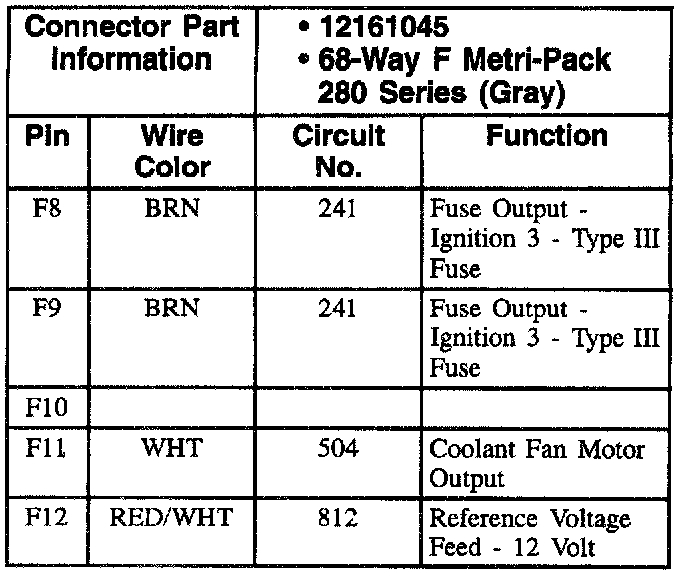

Underhood Bussed Electrical Center: C1 (Part 3 Of 5):

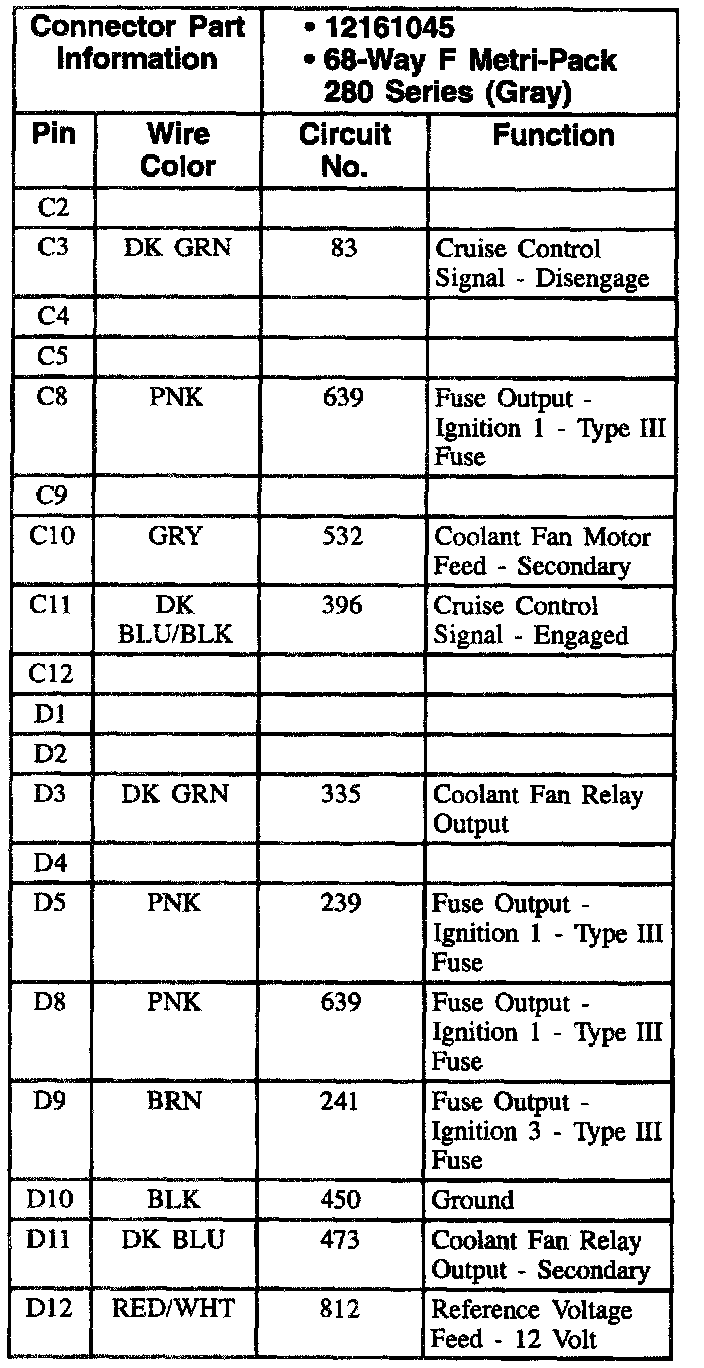

Underhood Bussed Electrical Center: C1 (Part 4 Of 5):

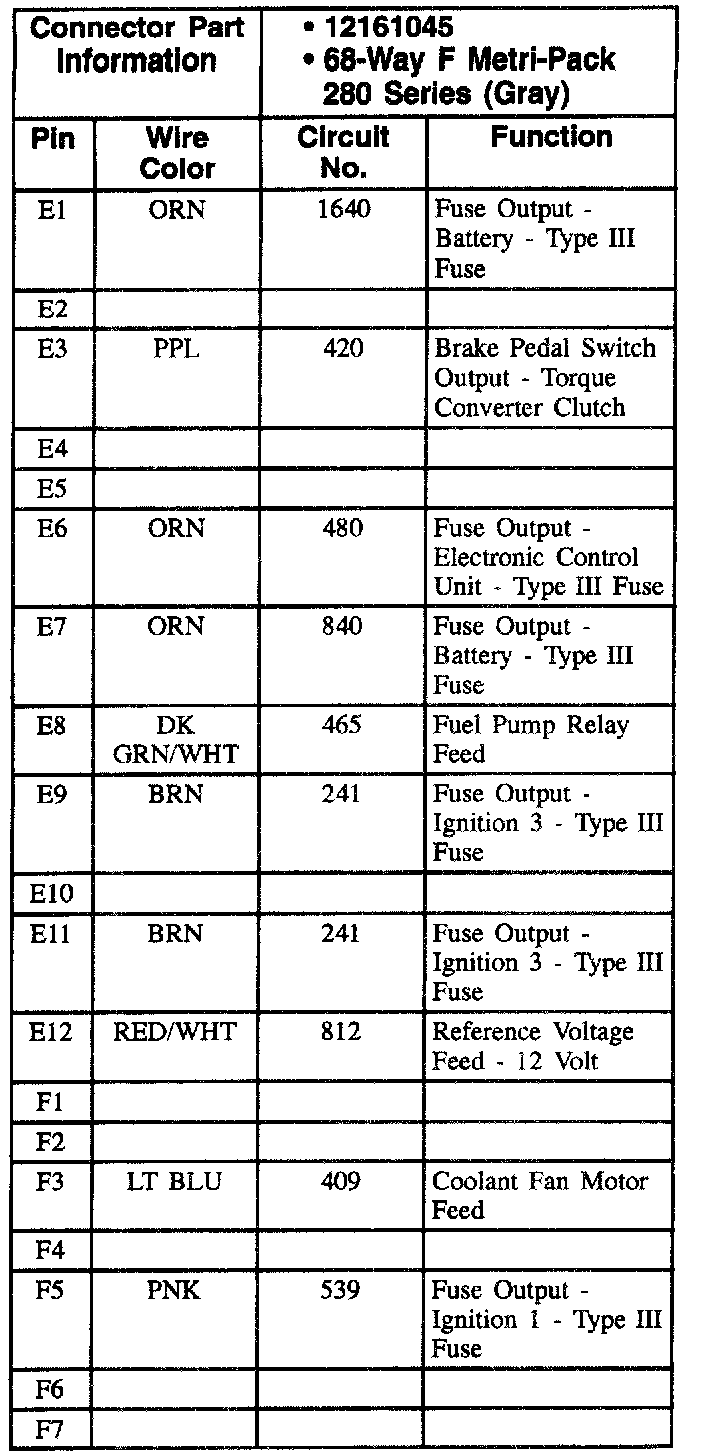

Underhood Bussed Electrical Center: C1 (Part 5 Of 5):
