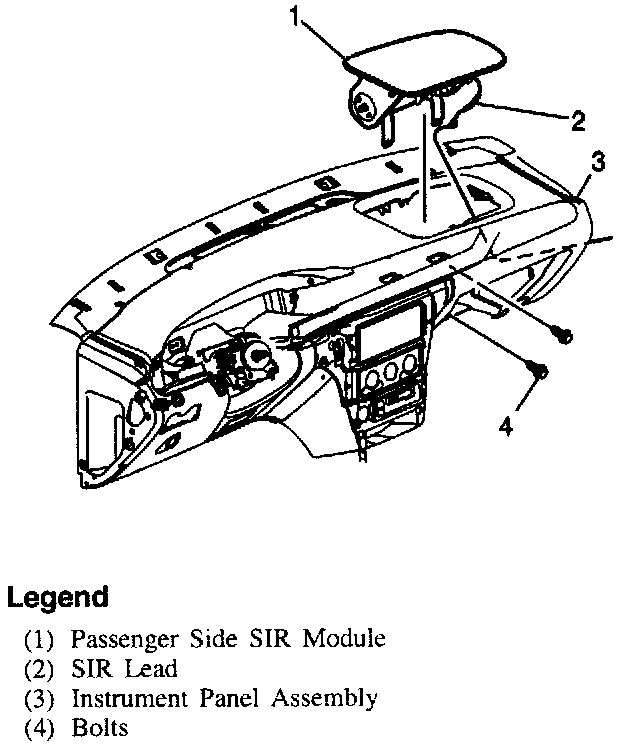

SIR Passenger Module Replacement
Description:
Remove or Disconnect
1. Disable SIR system. 2. Instrument Panel.
3. Screws to tie bar.
4. Electrical connector.
5. Module.
Install or Connect
1. Module.
2. Electrical connector.
3. Screws to tie bar.
4. Instrument Panel.
5. Enable SIR system.
