Home >> Oldsmobile >> 1997 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams >> C1

C1

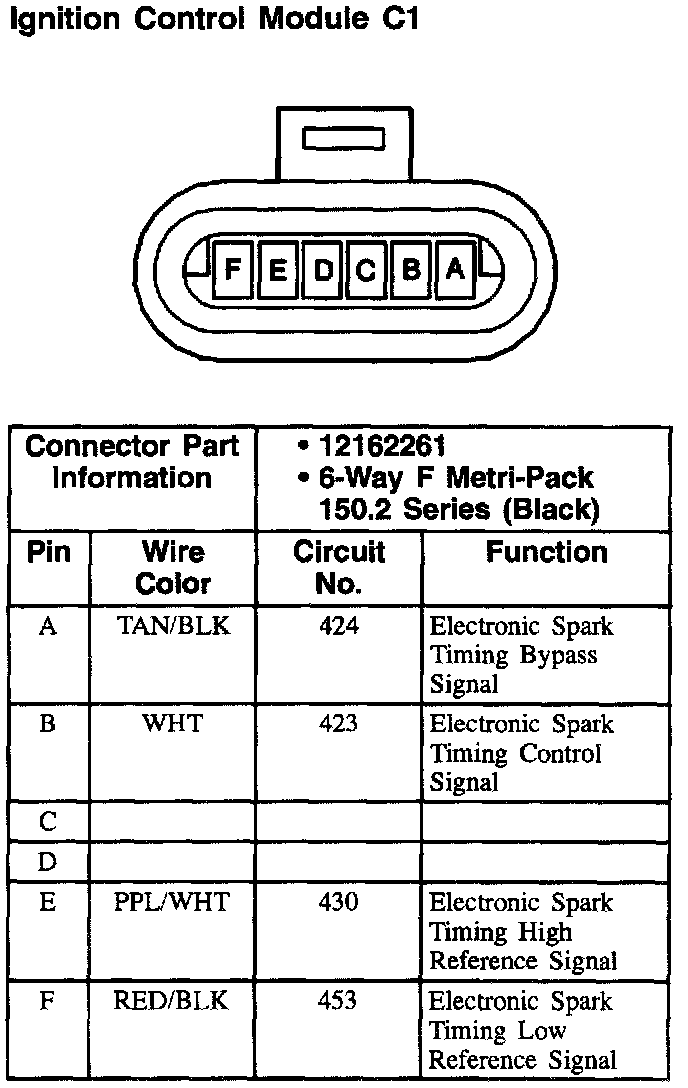

Ignition Control Module: C1:
