Oldsmobile
>>
1997
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
I/P Bussed Electrical Center
>>
RH
RH

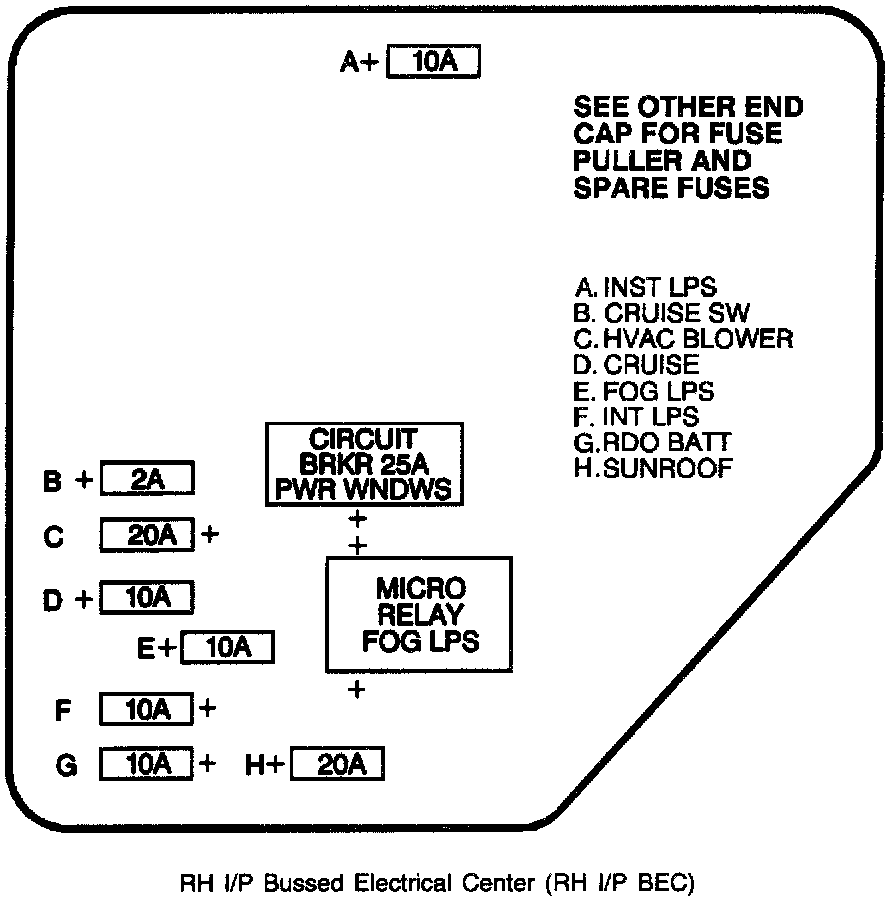

RH I/P Bussed Electrical Center:

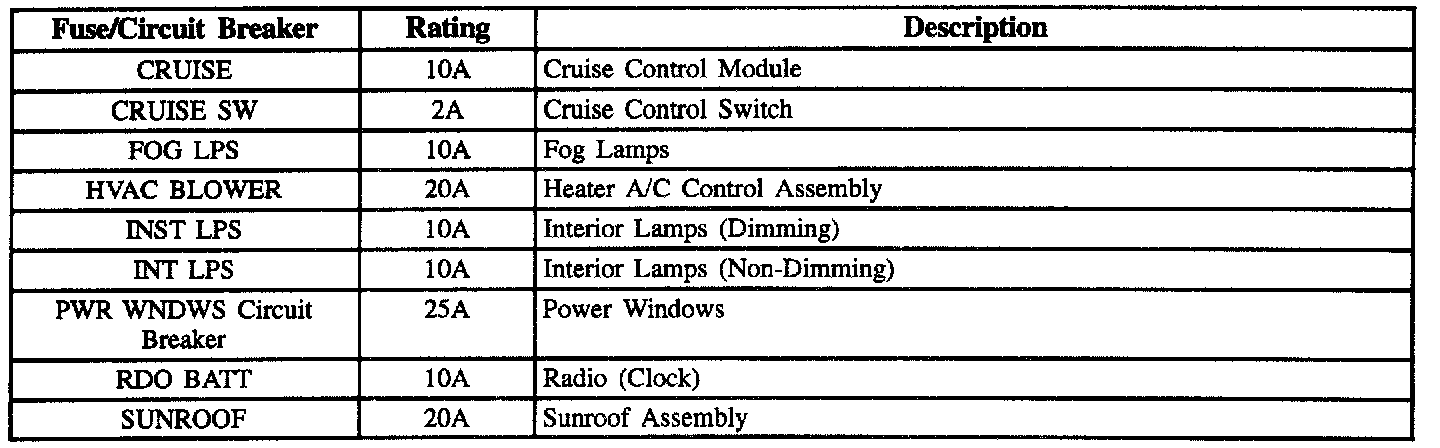

RH I/P Bussed Electrical Center:
