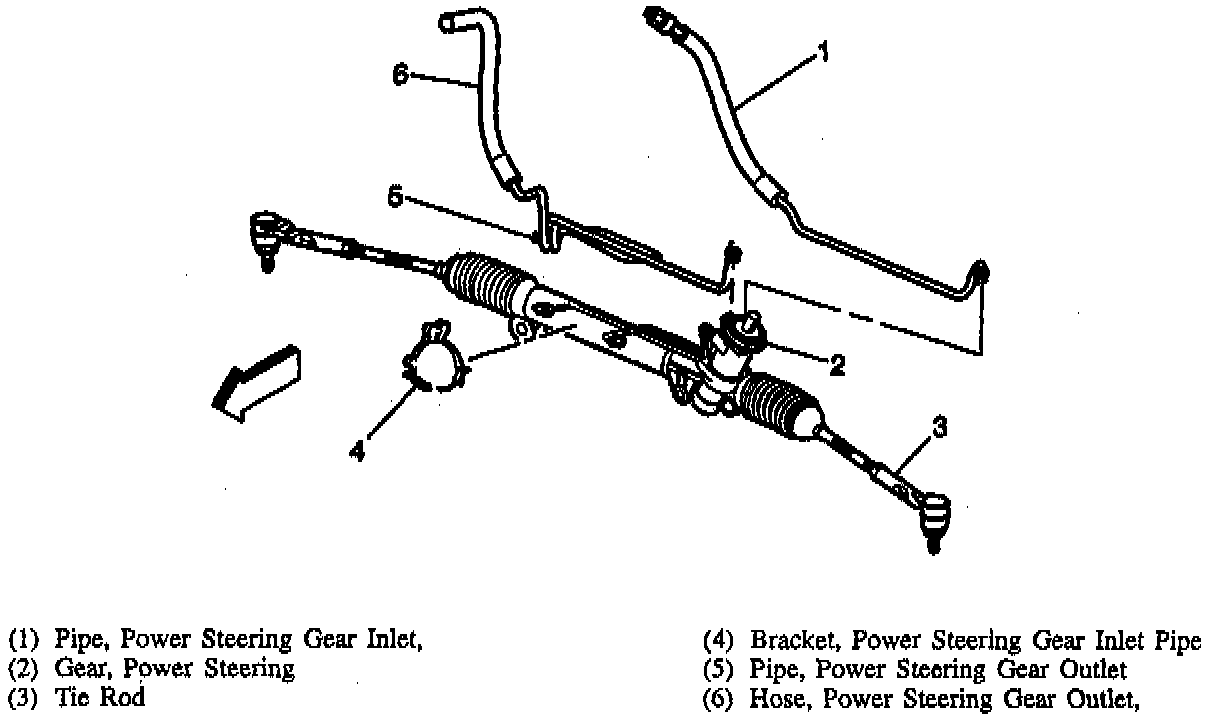

Gear Inlet Pipe/Hose Assembly

REMOVE OR DISCONNECT

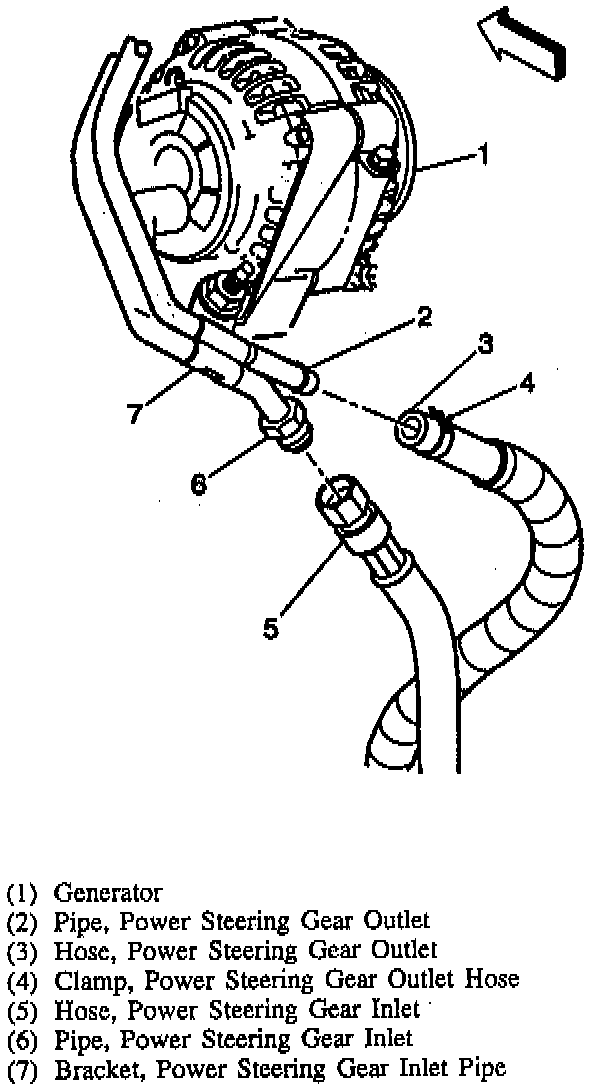

1. Gear inlet hose/pipe from pipe (going to pump).
2. Raise vehicle.
3. Line retainer (if applicable).

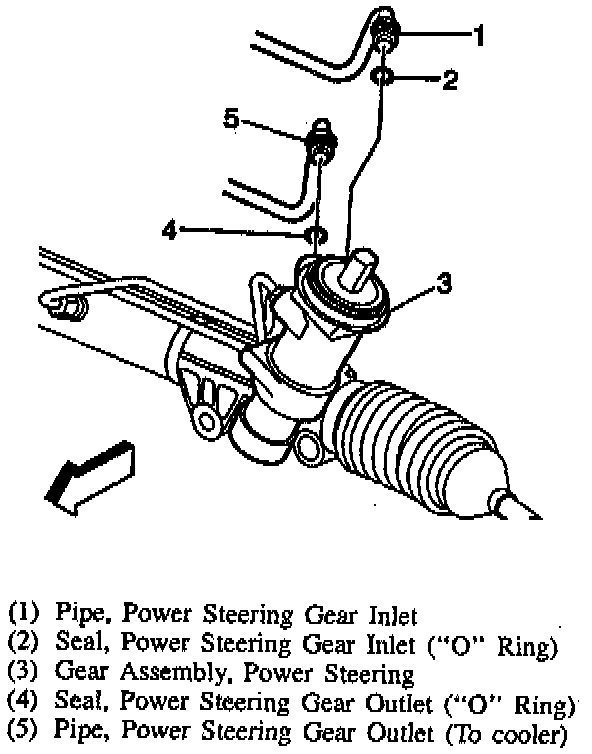

4. Gear inlet pipe/hose from the steering gear.
5. Gear inlet pipe/hose from vehicle.

INSTALL OR CONNECT
1. Gear inlet pipe/hose to vehicle.

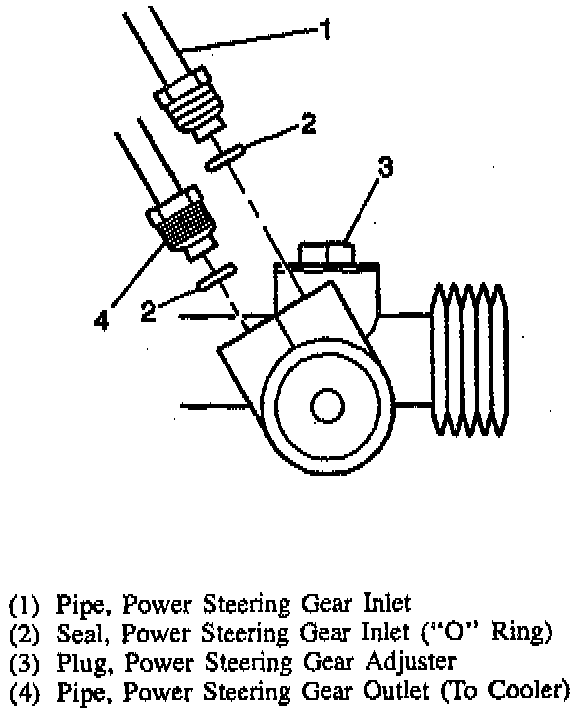

2. Gear inlet pipe/hose to the steering gear.
^ Tighten pipe/hose assembly to 27 Nm (20 ft. lbs.).
3. Line retainer (if applicable).
4. Lower vehicle.

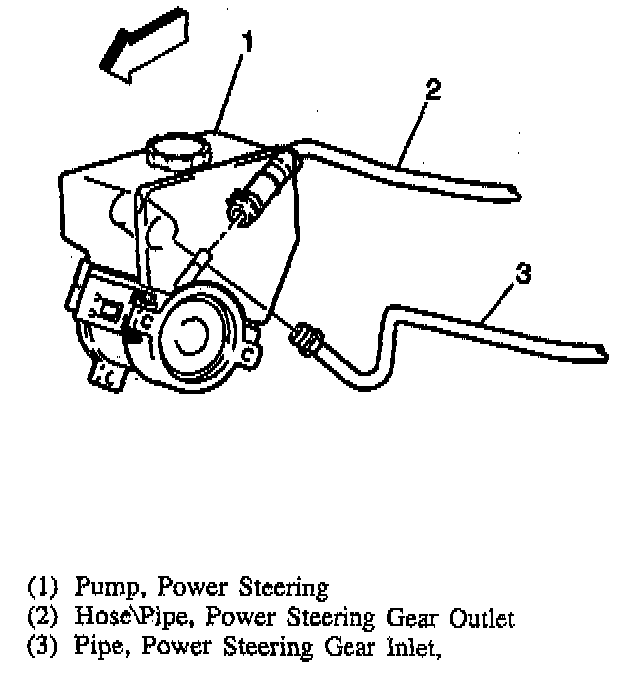

5. Gear inlet hose/pipe to pipe (going to pump).
^ Tighten pipe to 27 Nm (20 ft. lbs.).

Important: Bleed air from system.

^ Inspect for leaks.
