Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1997
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
Connector Views

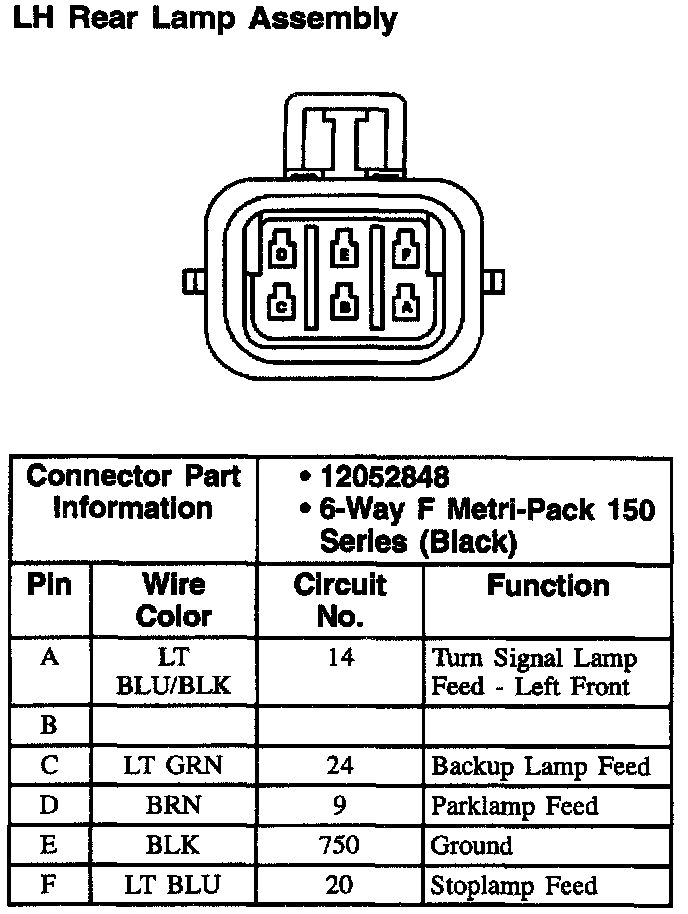

LH Rear Lamp Assembly:

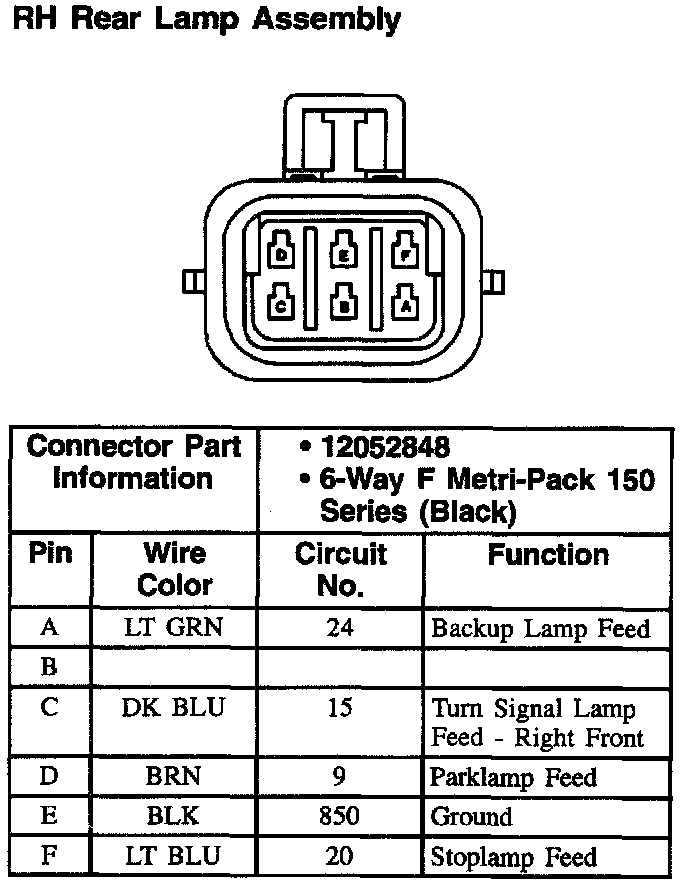

RH Rear Lamp Assembly:
