Exhaust Pipe: Service and Repair

REMOVAL
1. Raise vehicle.

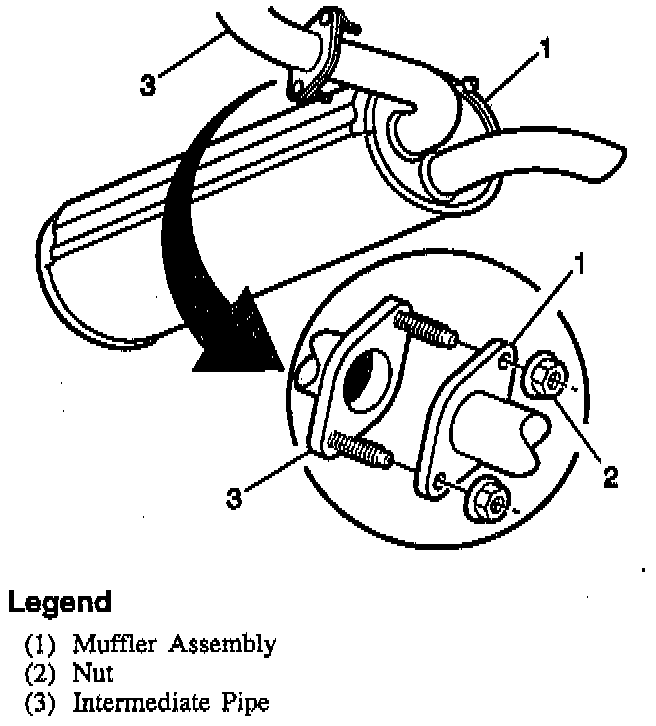

2. Support three way catalytic converter.

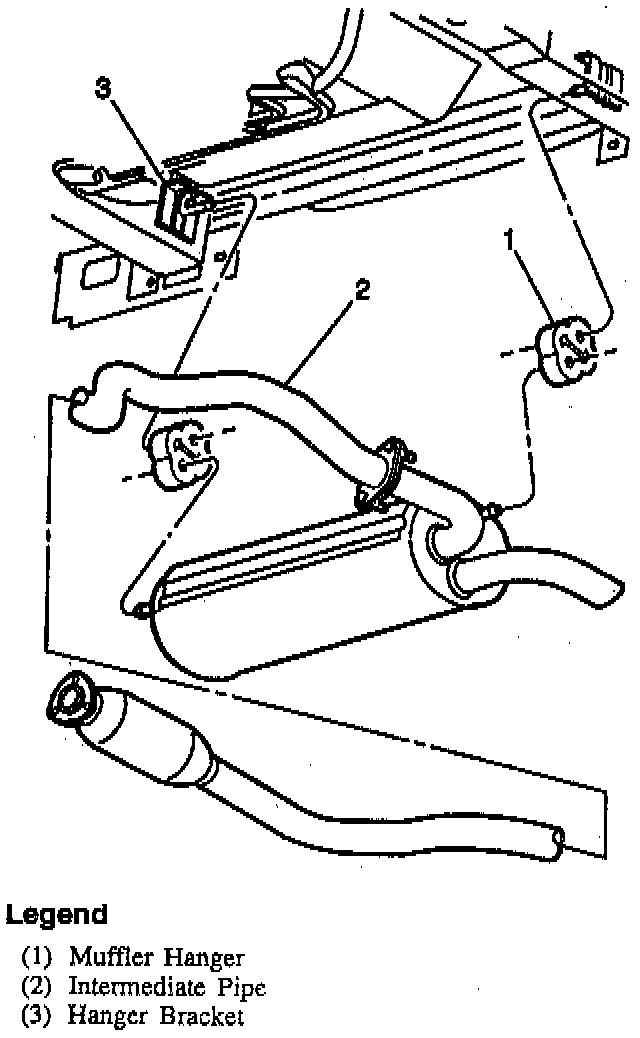

3. Intermediate pipe from three way catalytic converter.
4. Muffler assembly from intermediate pipe.

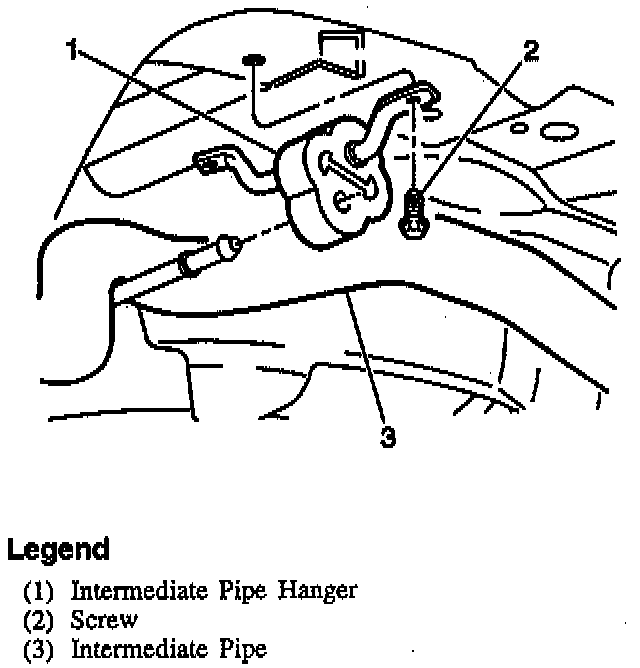

5. Intermediate pipe from hanger.
6. Intermediate pipe.
7. Three way catalytic converter seal.





8. Intermediate pipe to muffler assembly seal. Clean flange surface.

INSTALLATION
1. Three way catalytic converter seal.
2. Intermediate pipe to muffler assembly seal.
3. Intermediate pipe to hanger.
4. Intermediate pipe to three way catalytic converter
5. Intermediate pipe to muffler assembly.
6. Lower vehicle.
