Home
>>
Oldsmobile
>>
1997
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Marker Lamp
Marker Lamp

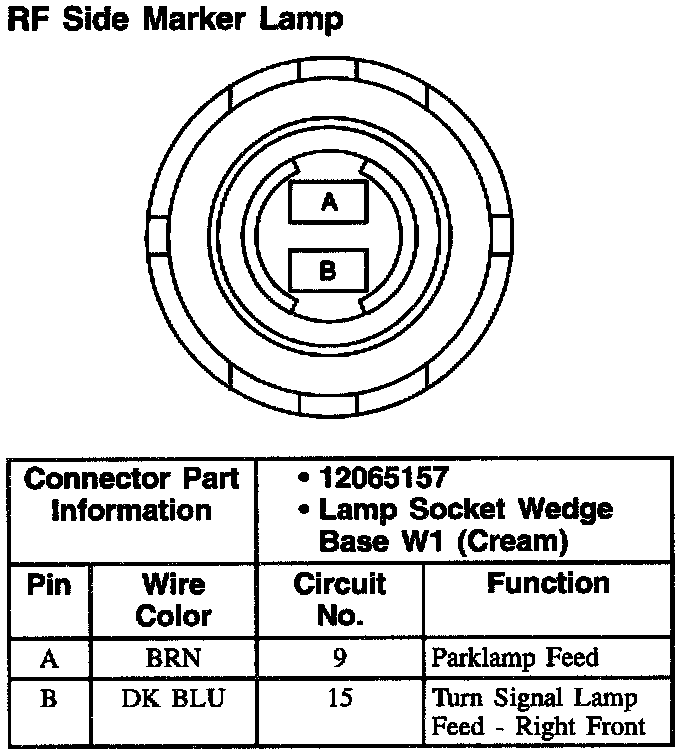

RF Side Marker Lamp:

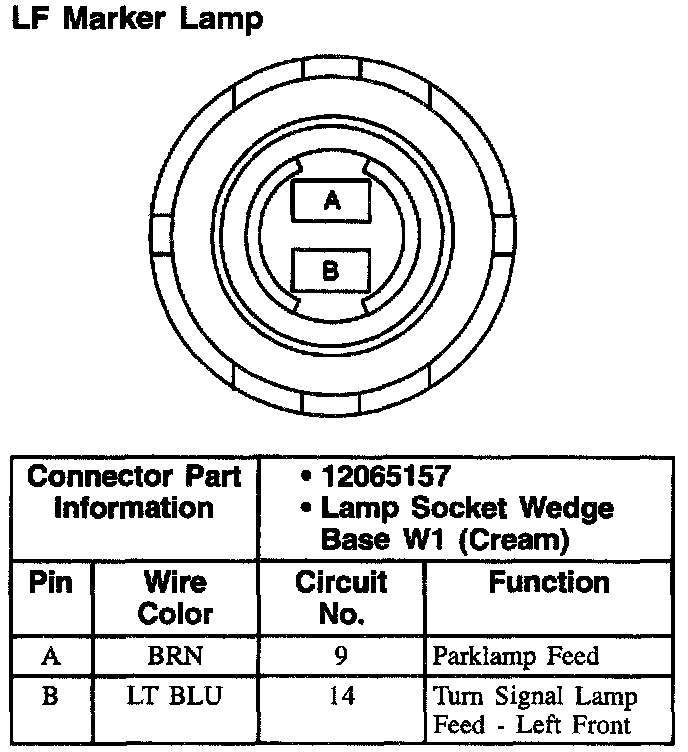

LF Marker Lamp:
