Home >> Oldsmobile >> 1997 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> C4

C4

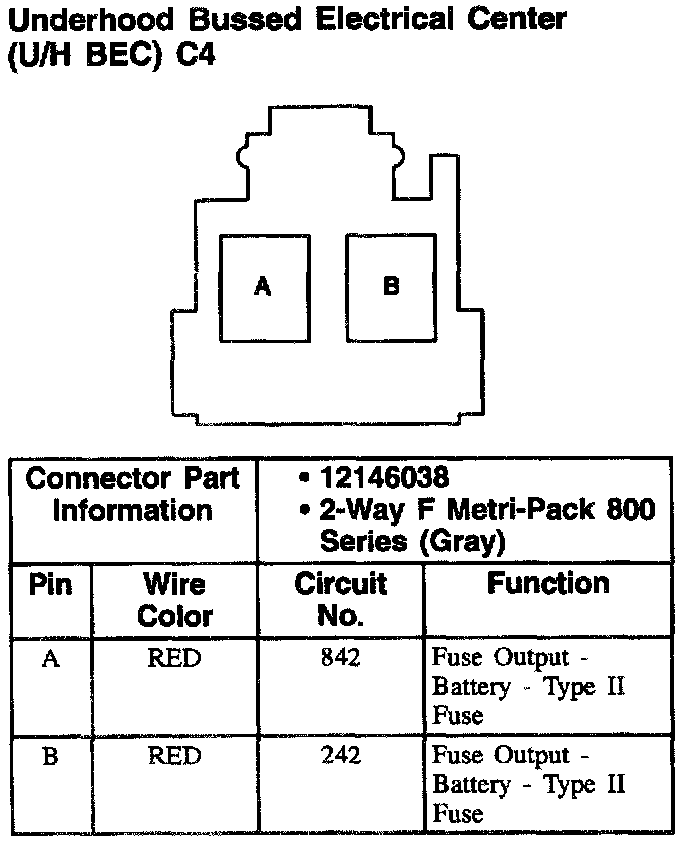

Underhood Bussed Electrical Center: C4:
