Pinout Description

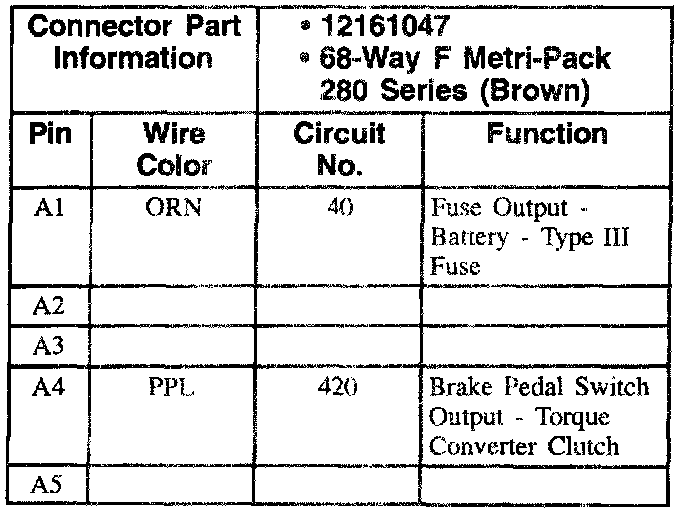

Underhood Bussed Electrical Center: C3 (Part 1 Of 4):

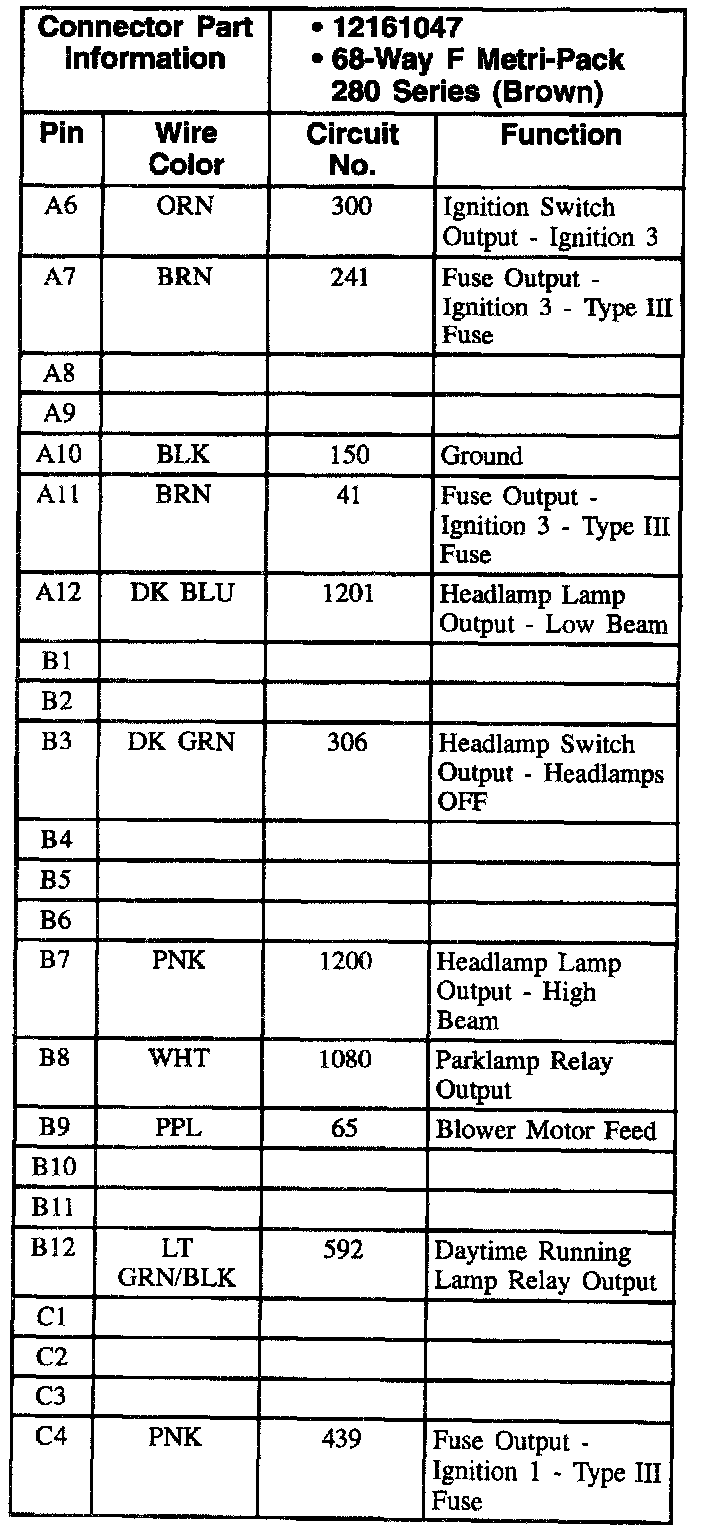

Underhood Bussed Electrical Center: C3 (Part 2 Of 4):

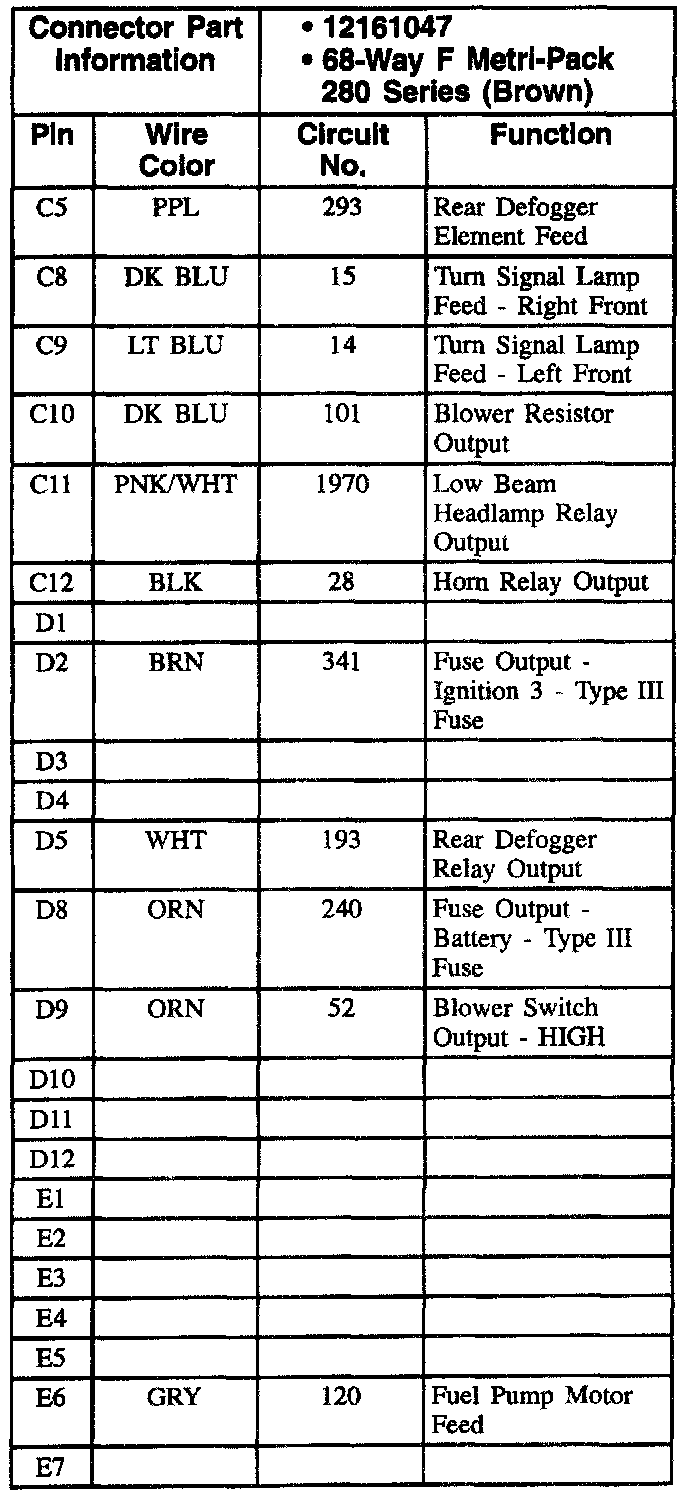

Underhood Bussed Electrical Center: C3 (Part 3 Of 4):

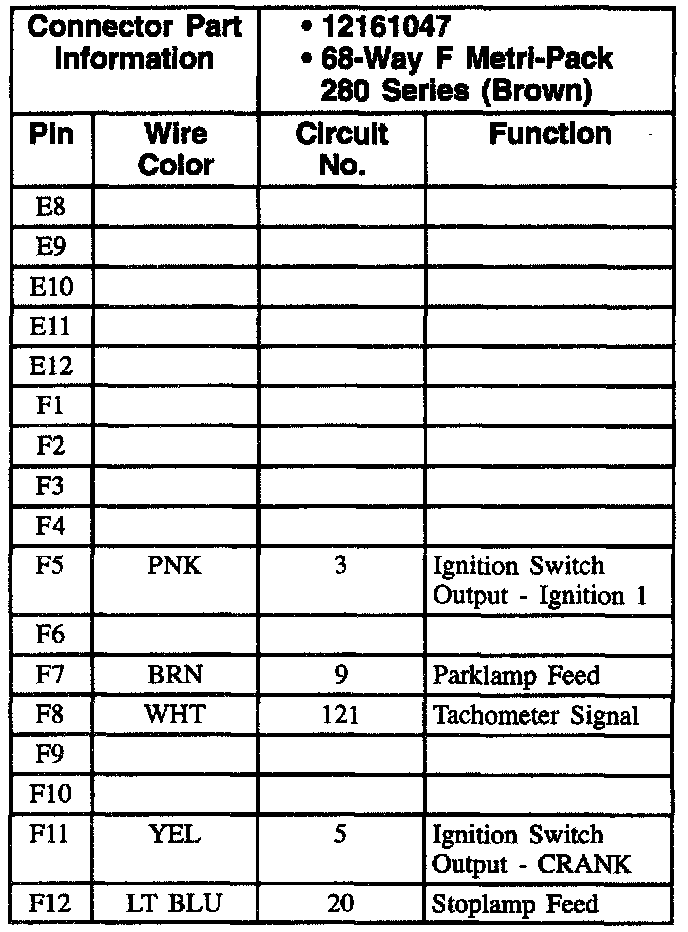

Underhood Bussed Electrical Center: C3 (Part 4 Of 4):
