Cruise Control Brake Switch Replacement

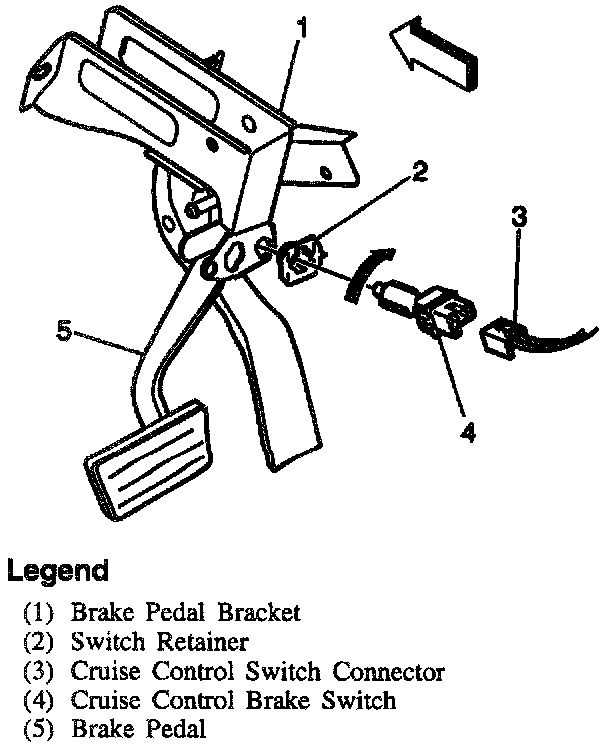

Cruise Control Brake Switch:

REMOVE OR DISCONNECT
1. Left side A-pillar defogger duct from underneath I/P.
2. Wiring harness connector.
3. Twist switch counterclockwise to release from retainer, pull rearward to remove.

INSTALL OR CONNECT
1. Switch into retainer.
2. With switch connector oriented toward the one o'clock position, slide the switch into retainer until the switch plunger is fully depressed into the switch barrel.
3. Twist switch clockwise until travel stop has been reached.

Note: The switch connector will face the three o'clock position when locked.

4. Wiring harness connector.
5. Left side A-pillar defogger duct from underneath I/P.
