Front
REMOVE OR DISCONNECT1. Left sound insulator.
2. Left carpet retainer and position carpet and sound deadener aside.
3. PCM electrical connections.
4. PCM retaining bracket door.
5. PCM.
6. PCM bracket.
7. Partially raise vehicle.

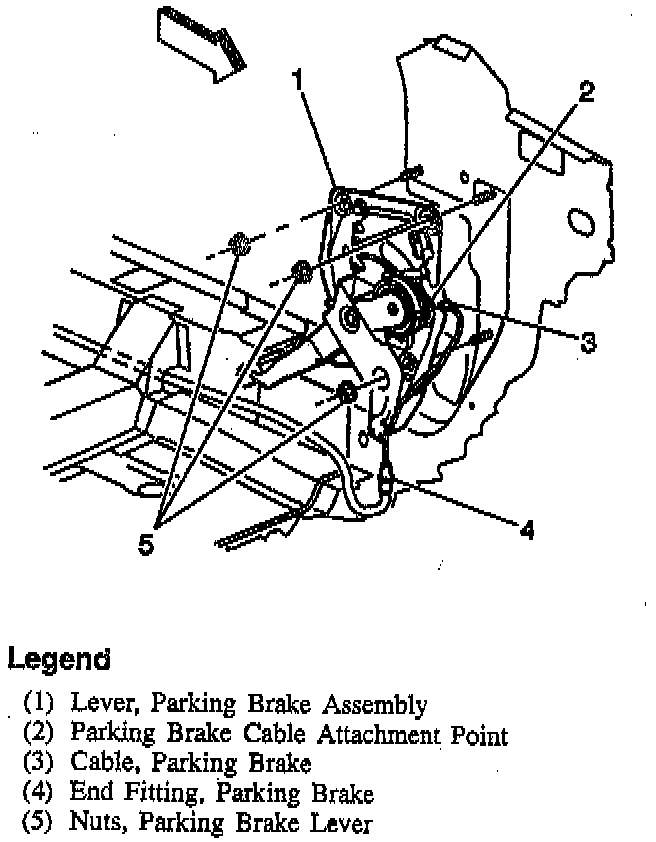

8. Parking brake from equalizer.

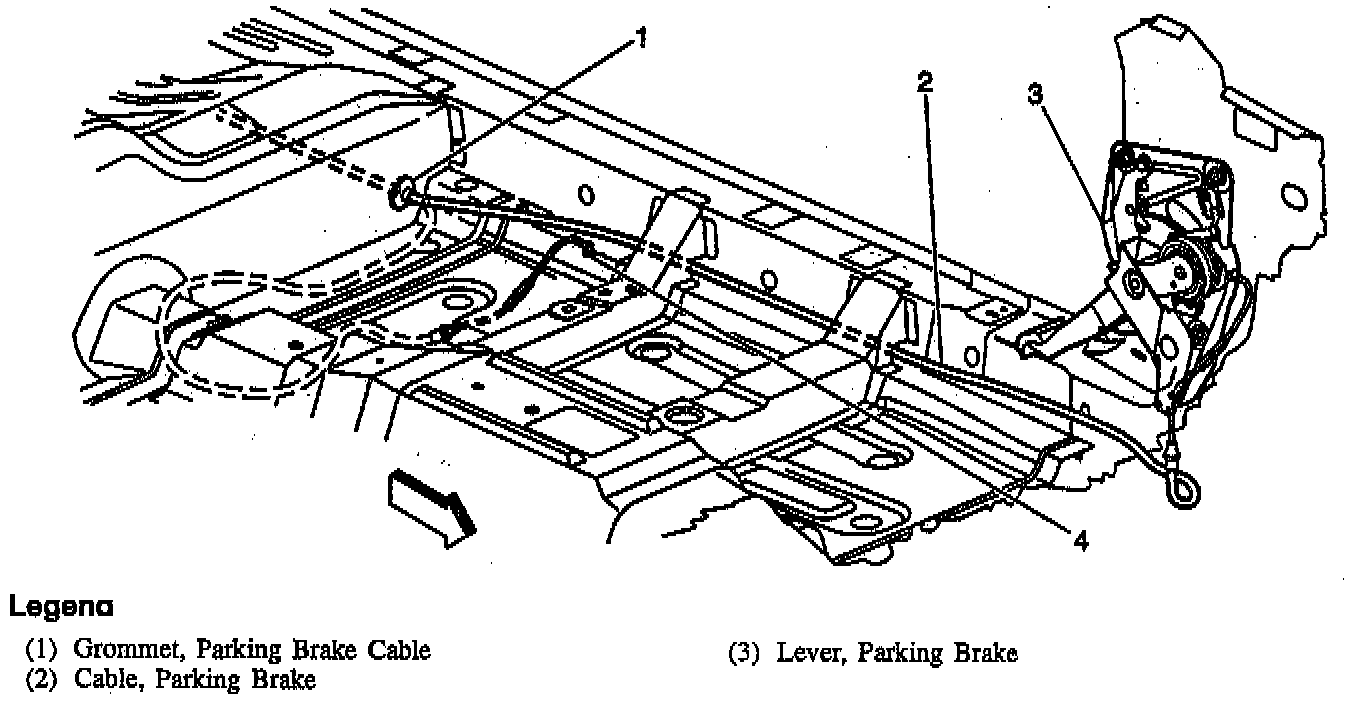

9. Front cable at connector clip and attach string.
10. Front cable at connector clip.
11. Cable from underbody.
12. Cable from vehicle.
INSTALL OR CONNECT
1. Cable to vehicle.
2. Front cable at connector clip.
3. Attach string to new cable and install at connector clip.
4. Parking brake to equalizer.
5. Lower vehicle.
6. PCM bracket.
7. PCM.
8. PCM retaining bracket door.
9. PCM electrical connections.
10. Position left carpet and sound deadener.
11. Carpet retainer.
12. Left sound insulator.
NOTE: Parking brake adjustment is not necessary. This is a self adjusting system and damage may result from attempting to adjust or modify this system in any way. It may be necessary to adjust rear brakes to obtain the proper tension in the system.
