Brake Fluid Level Sensor/Switch: Service and Repair

REMOVE OR DISCONNECT
1. Electrical connector from fluid level switch.

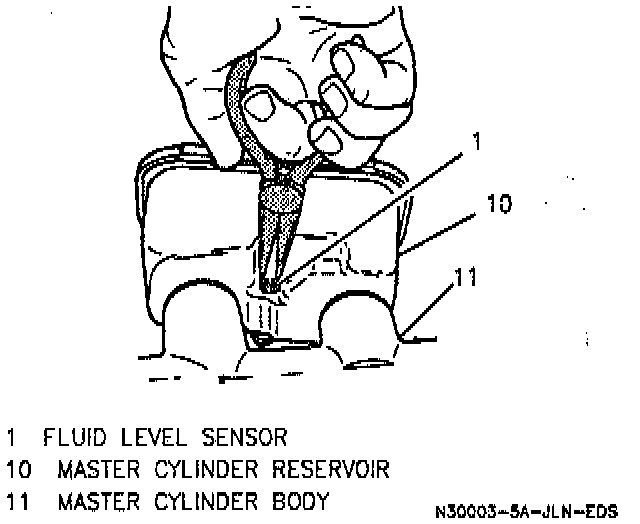

2. Fluid level switch using needle nose pliers to compress switch locking tabs at inboard side of master cylinder reservoir.

INSTALL OR CONNECT
1. Fluid level switch into master cylinder reservoir until locking tabs snap in place.
2. Electrical connector to fluid level switch.
