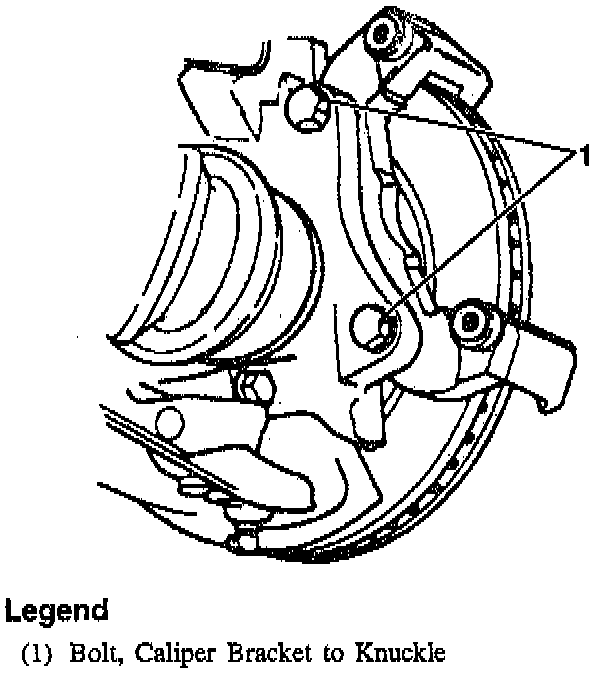

Caliper Bracket Assembly Replacement

REMOVE OR DISCONNECT
1. Caliper assembly.





2. Knuckle bracket.

INSTALL OR CONNECT
1. Knuckle bracket.
2. Caliper assembly.
