Oldsmobile
>>
1997
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>

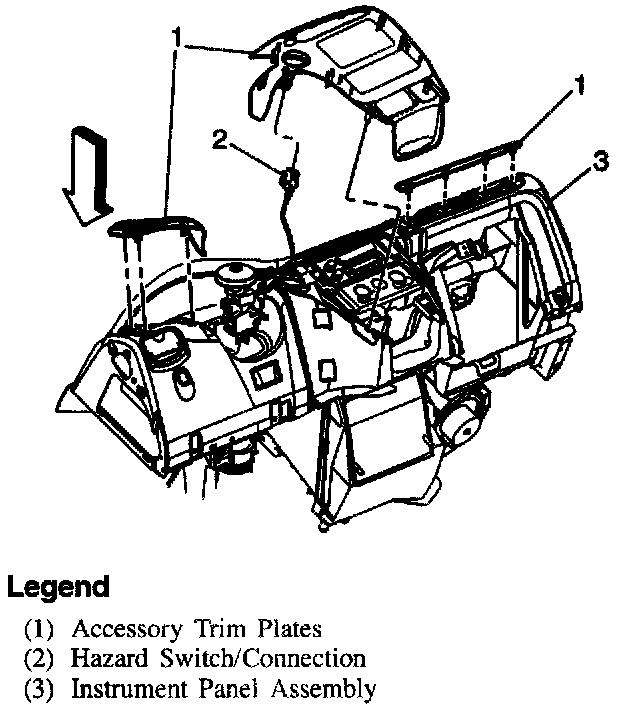

Trim Plate
Trim Plate
Description:
Remove or Disconnect
1.
Ignition
key
trim cover.
2.
Gently pull rearward to disengage retainers.
Install or Connect
1.
Align tabs to trim plate.
2.
Snap into place.
3.
Ignition
key
trim cover.
