Cylinder Head Bolt Torque and Sequence

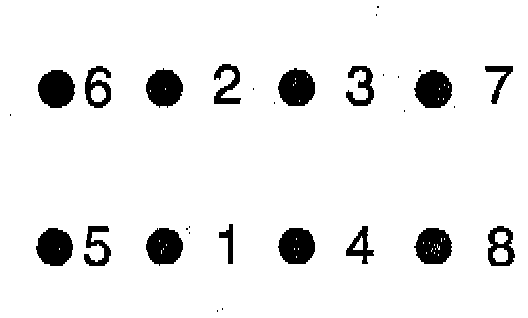

Cylinder Head Bolt Tightening Sequence:
Initially tighten the bolts to 60 Nm (44 ft. lbs.). Use the Torque Angle Meter in order to rotate the bolts an additional 90 degrees.
Initially tighten the bolts to 60 Nm (44 ft. lbs.). Use the Torque Angle Meter in order to rotate the bolts an additional 90 degrees.
