Home >> Oldsmobile >> 1997 >> Cutlass Supreme V6-204 3.4L DOHC VIN X SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pin Information >> Pins 62-80

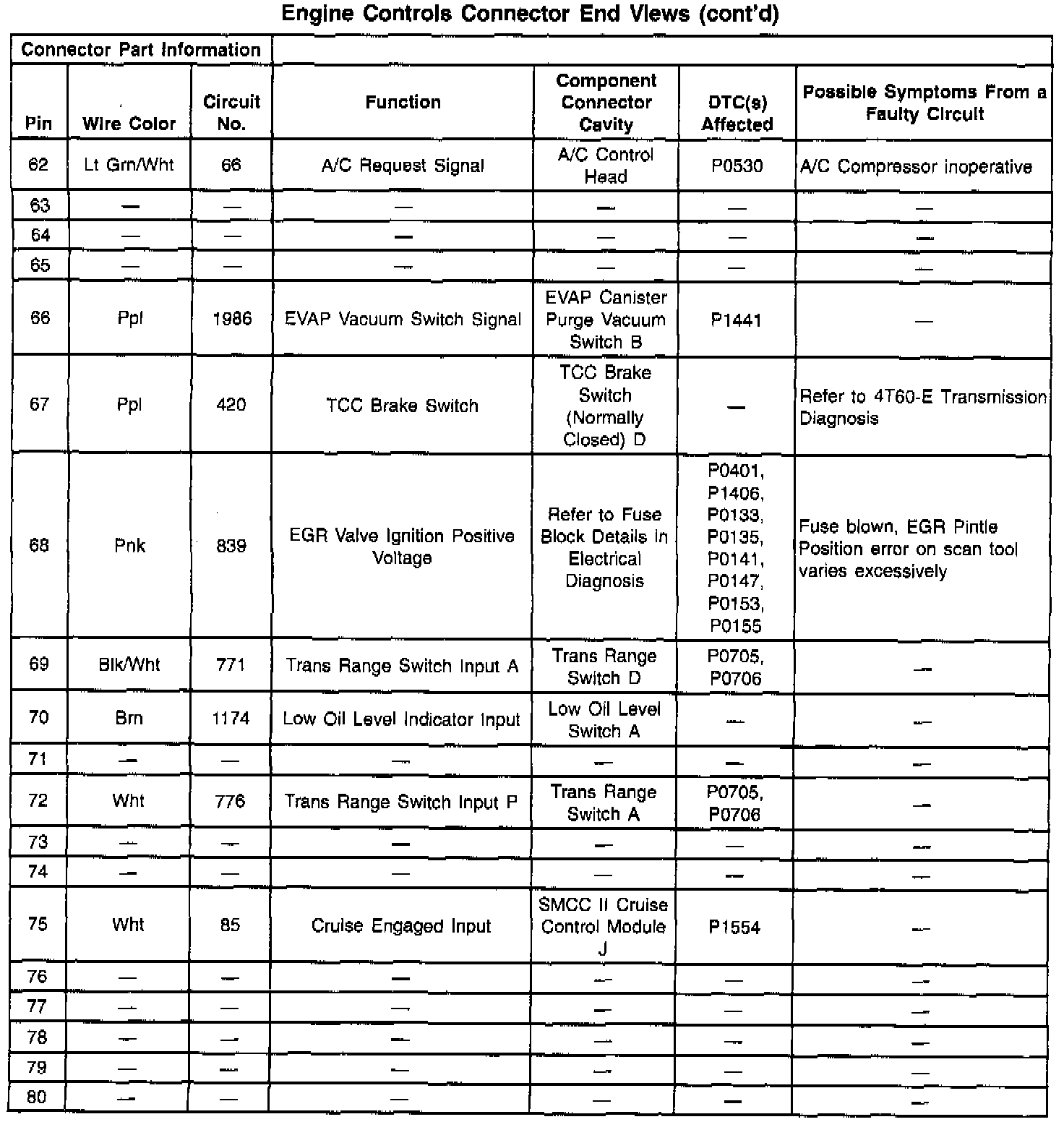

Pins 62-80

Diagnostic Chart:
