Rear Toe Adjustment

^ Tool Required:
- J 38118 Rear Toe Adjusting Tool
- Or Equivalent

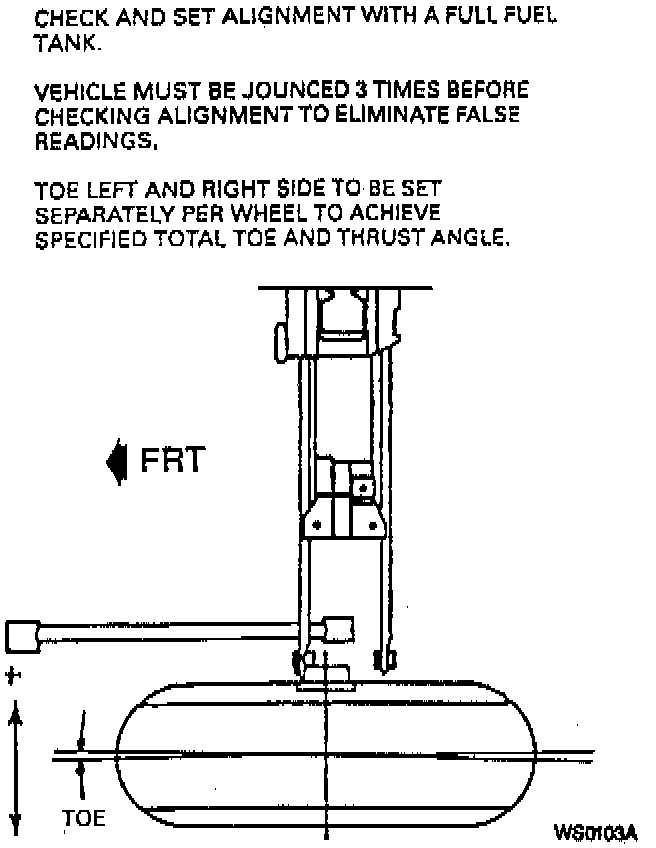

Important: Perform left and right rear toe adjustment procedures in the same manner.





Adjust

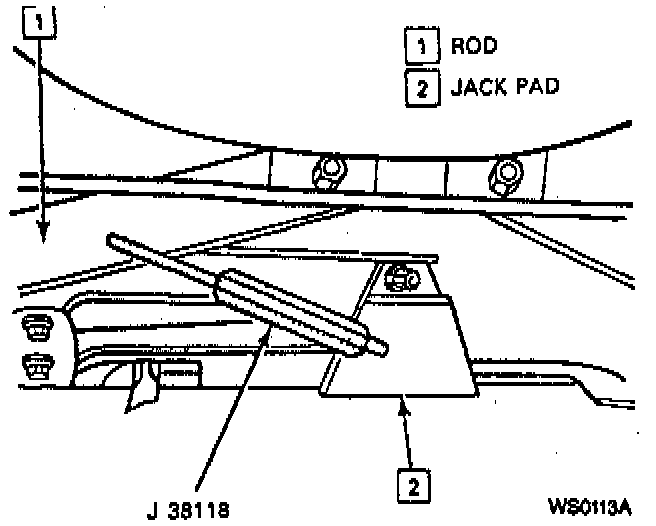

1. Install J 38118 after lubricating threads with lubricant.
- Hand-tighten turnbuckle portion of J 38118 in direction of adjustment.
2. Loosen rear rod nut at crossmember a minimum of four turns.
3. Rotate turnbuckle portion of J 38118 to reach correct toe specification. Refer to "Specifications."
- Tighten rear rod to crossmember nut to 150 Nm (111 ft. lbs.).
4. Remove J 38118.
