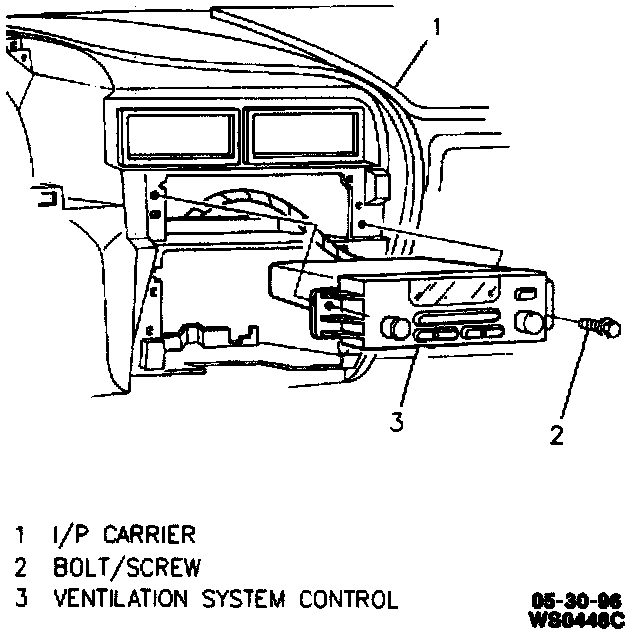

Control Assembly, HVAC

Heater A/C Controls (Oldsmobile):

Remove or Disconnect
1. Front floor console, if equipped.
2. Instrument panel accessory trim plate.
3. Rotate heater A/C controls clockwise to unsnap.
4. Bolts/screws from heater A/C controls.
5. Electrical connectors.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical connectors.
2. Rotate heater A/C controls counter clockwise and snap in to instrument panel.
3. Bolts/screw to heater A/C controls.

Tighten
^ Bolt/screw to 2 N.m (18 lb. in.).

4. Instrument panel accessory trim plate.
