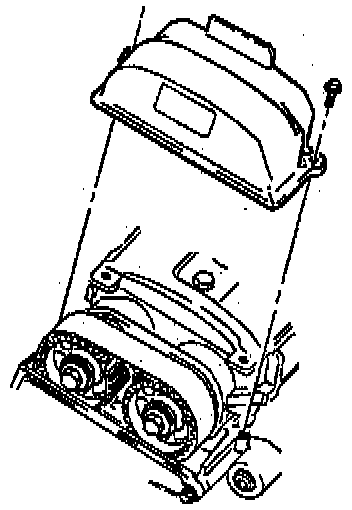

Left Side

REMOVAL
1. Remove the left upper timing belt cover retaining bolts.
2. Remove the left upper timing belt cover.

INSTALLATION
1. Install the left upper timing belt cover.
2. Install the left upper timing belt cover retaining bolts. Tighten the bolts to 10 Nm (89 ft. lbs.).
