Home
>>
Oldsmobile
>>
1997
>>
Cutlass Supreme V6-204 3.4L DOHC VIN X SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
>>
A/T Controls & Stop Light Switch
A/T Controls & Stop Light Switch

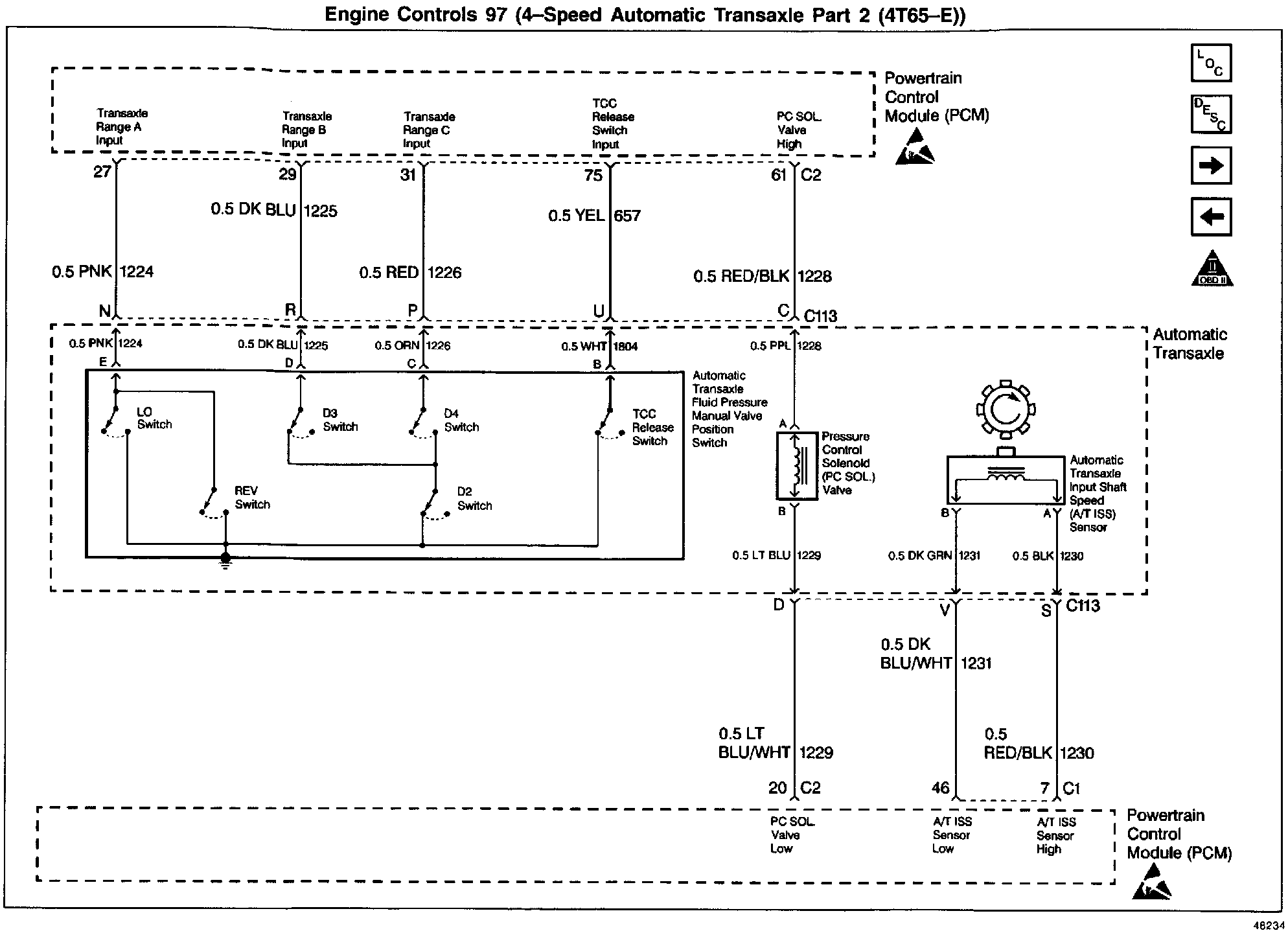

Wiring Diagram:

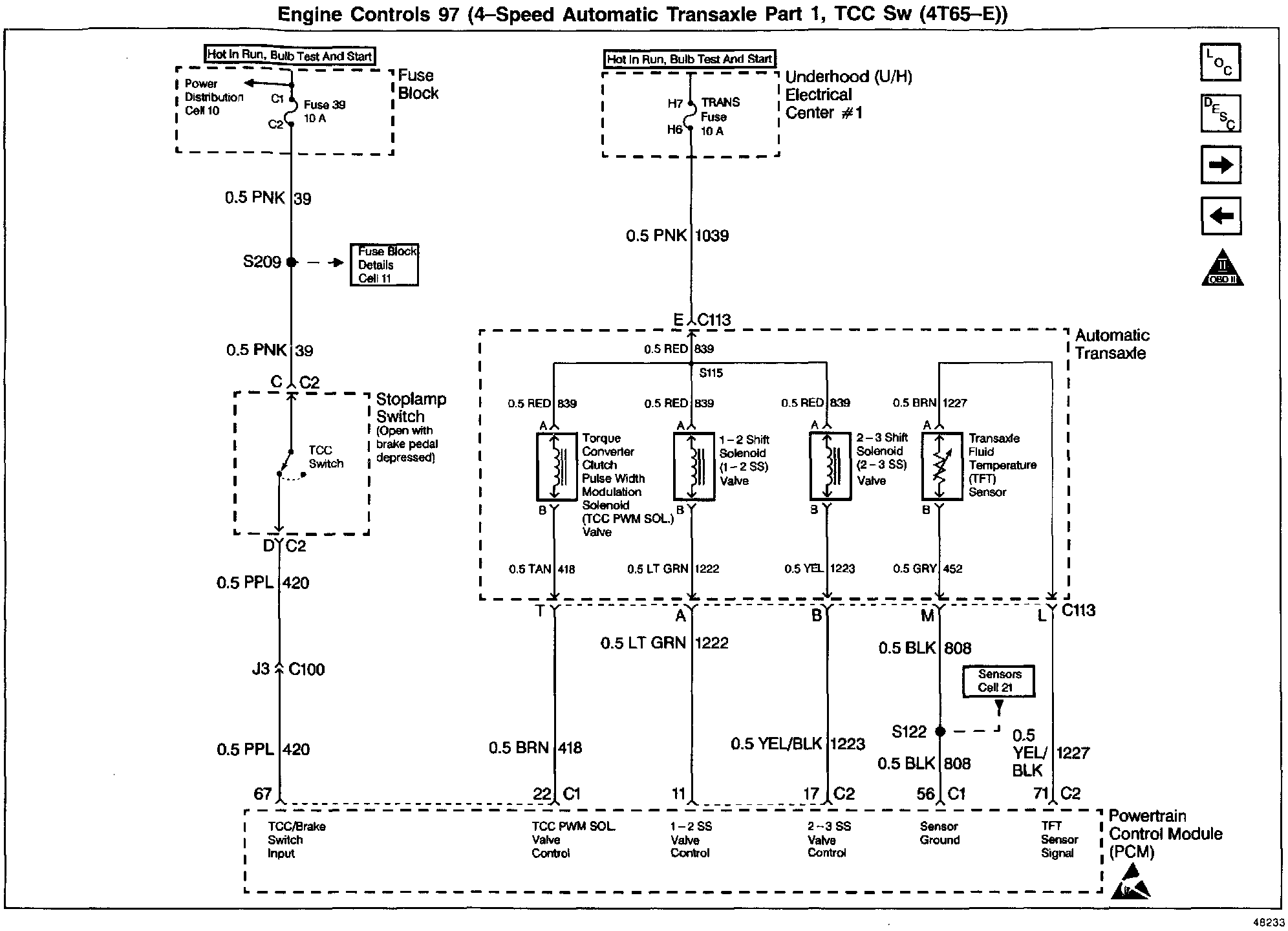

Wiring Diagram:
