Brake Fluid Level Sensor/Switch: Service and Repair

REMOVE OR DISCONNECT
1. Electrical connector from fluid level sensor.

Removing Valve Cap:

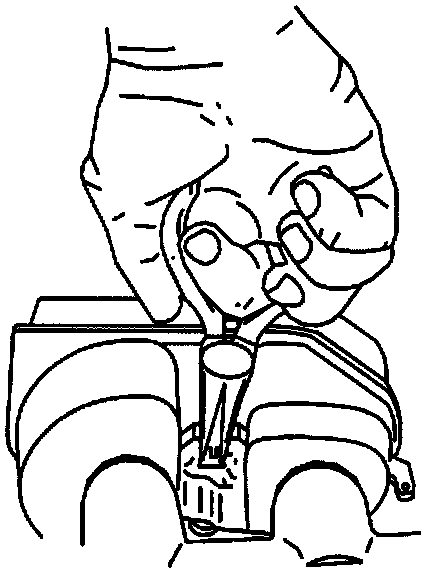

2. Fluid level sensor using needle nose pliers to compress switch locking tabs at outboard side of master cylinder.

INSTALL OR CONNECT
1. Fluid level sensor until locking tabs snap into place.
2. Electrical connector to fluid level sensor.
