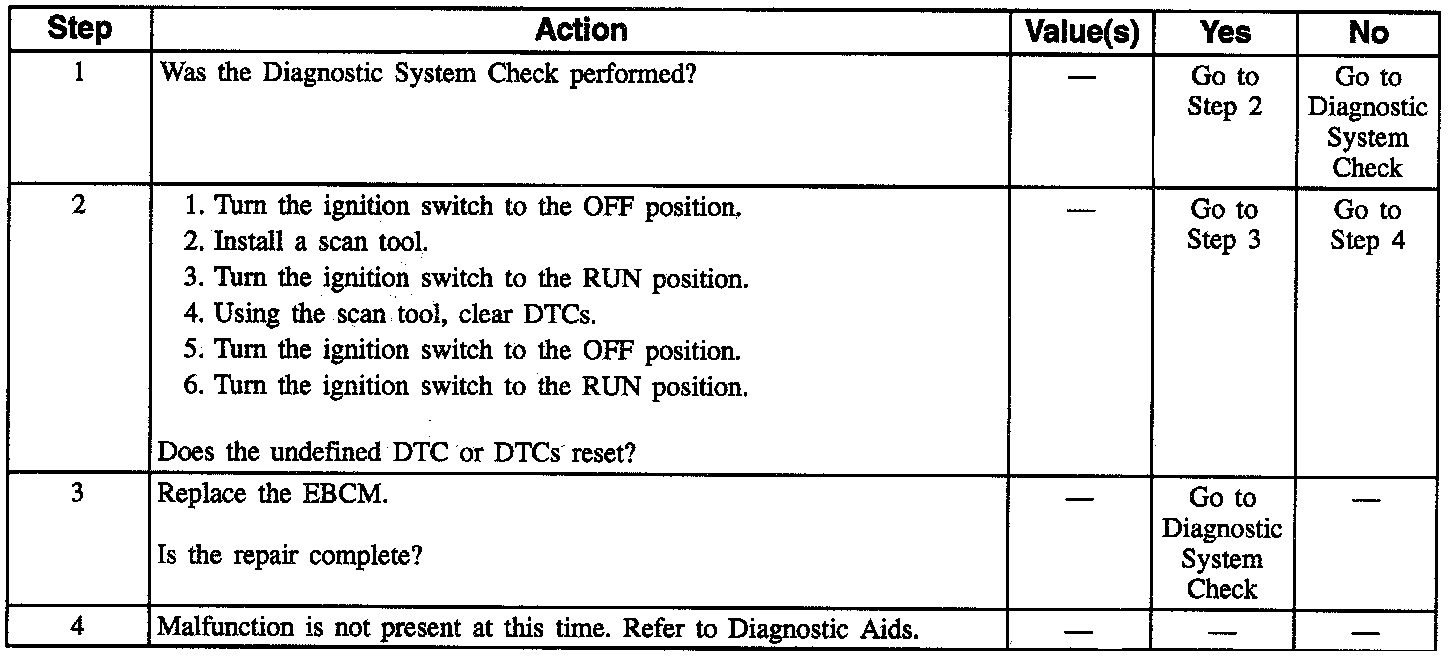

Table E Scan Tool Displays Undefined DTCs

Symptom Table E:

CIRCUIT DESCRIPTION

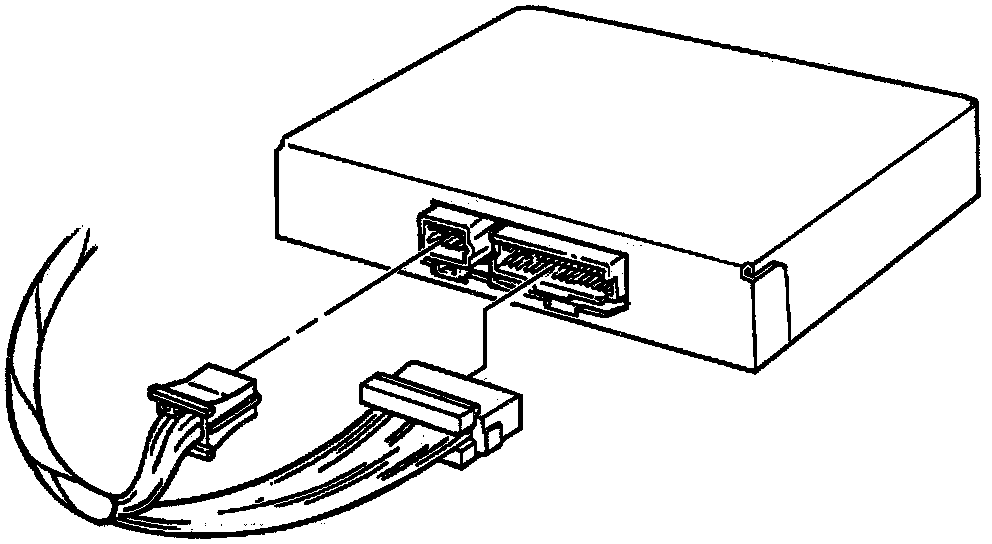

This symptom table identifies undefined DTCs which are caused by an internal malfunction in the EBCM.

DIAGNOSTIC AIDS
An intermittent malfunction may be caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation. Any circuitry that is suspected of causing the intermittent complaint should be thoroughly checked for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections, or physical damage to the wiring harness.
