Access Cover: Service and Repair

REMOVAL

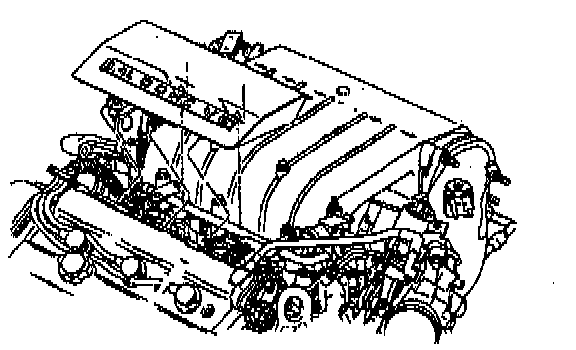

1. Pull the fuel injector sight shield up from the rear intake manifold side.
2. Pivot the fuel injector sight shield forward.
3. Remove the fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.

INSTALLATION
1. Insert the fuel injector sight shield tabs into the edge of the camshaft cover.
2. Pivot the fuel injector sight shield back until the sight shield clips onto the fuel rail.
