Wiper Motor Cover Replacement

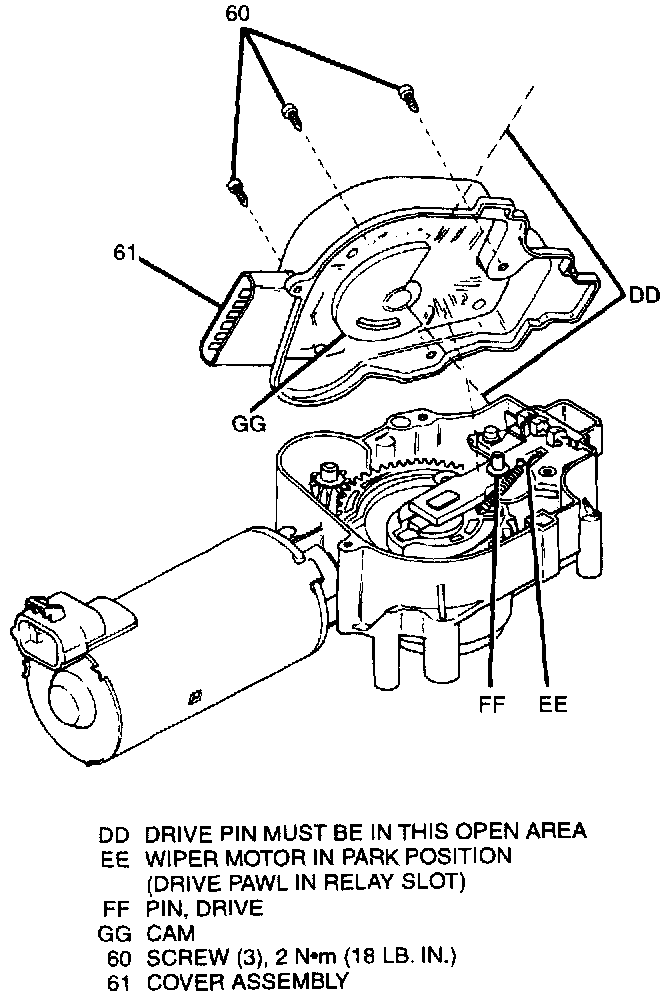

Wiper Motor Cover Assembly:

Remove or Disconnect
1. Three screws (60).
2. Cover assembly (61).

Install or Connect

NOTICE: Refer to Service Precautions.

1. Cover assembly (61).

Important
^ Always install cover assembly with wiper motor in park position and with drive pin in open area of the cam.
2. Three screws (60).

Tighten
^ Screws (60) to 2 N.m (18 lb. in.).
