Front Wiper Motor

Wiper Motor Assembly:

Remove or Disconnect

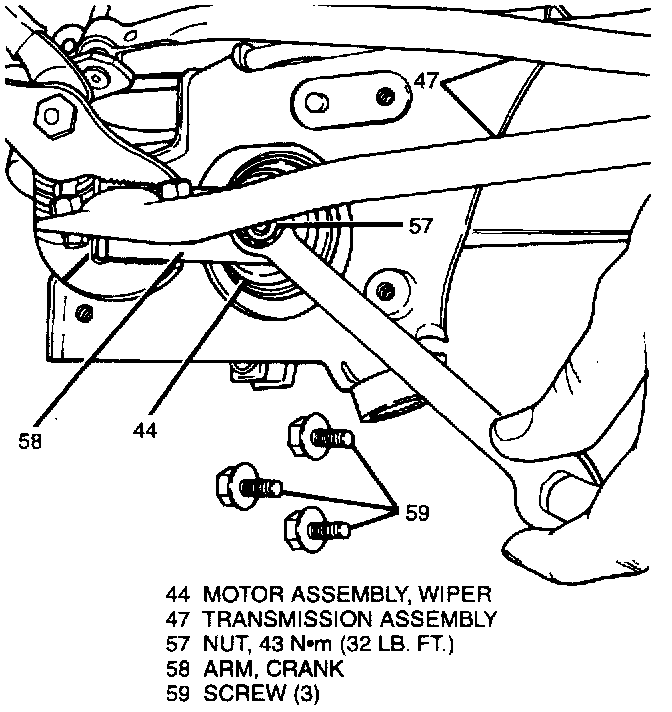

1. Nut (57) and crank arm (58) from wiper motor assembly (44).
Important
^ Crank arm MUST be removed from WIPER MOTOR ONLY. Do NOT remove crank arm from transmission assembly because of factory preset adjustment.
2. Three screws (59). then remove wiper motor assembly for repair or replacement.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Wiper motor assembly (44) with three screws (59).
2. Crank arm (58) and nut (57).

Tighten
^ Nut (57) to 43 N.m (32 lb. ft.).
