Wiper Blade Insert Set Check

Tip Pressure:

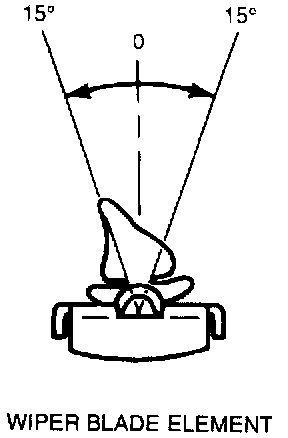

Figure 40
Remove wiper blade assemblies from wiper arm assemblies being sure to note orientation for reassembly. Look down the length of the wiper blade element. The rubber element which contacts the glass must be on the centerline of the blade assembly ±15 degrees. Replace the element if necessary.
