Blade Assembly Mounting Angle Check

Pin,blade Attaching:

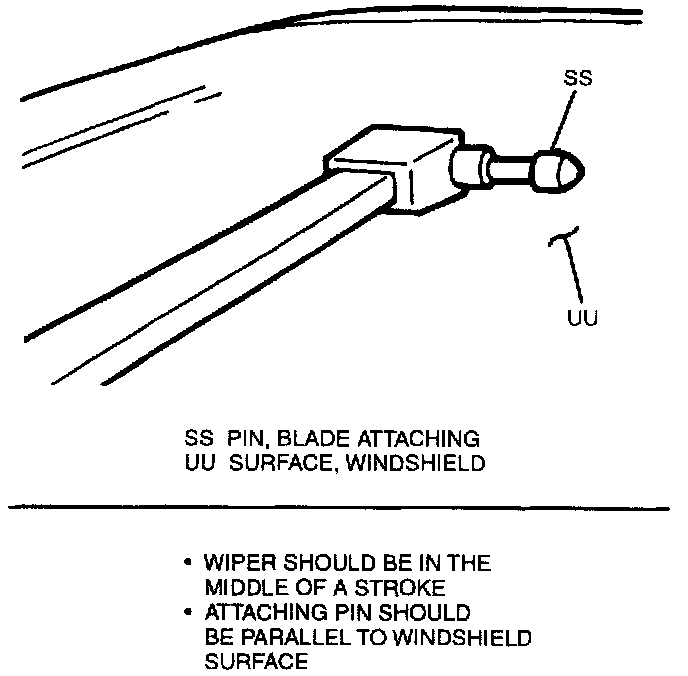

Figure 39
With each wiper arm assembly in the middle of a wipe stroke and the wiper blade assembly removed, visually check that the blade assembly mounting pin on each wiper arm is parallel to the windshield. Replace a wiper arm assembly if necessary.
