Windshield Washer Pump: Service and Repair

Washer Pump:

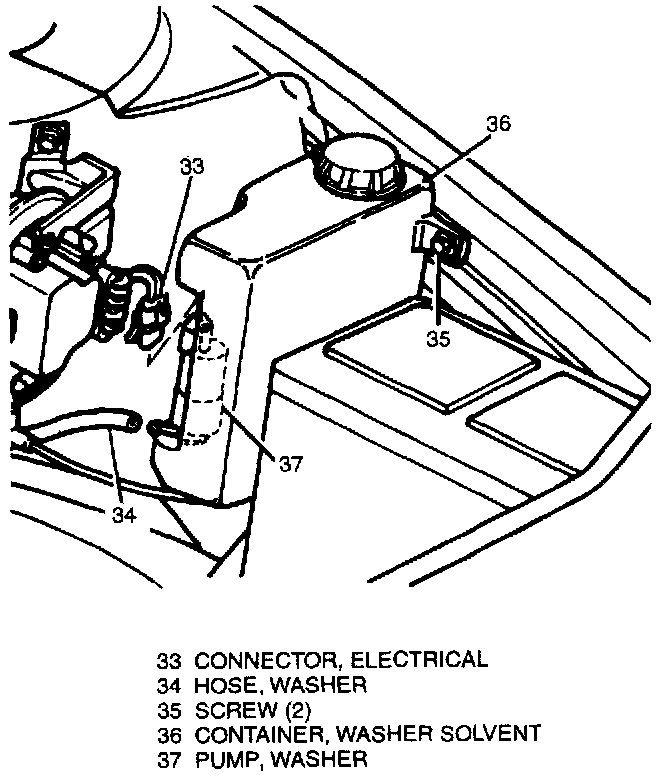

Remove or Disconnect
1. Negative battery cable from battery.
2. Washer solvent.
3. Electrical connector (33) and washer hose (34).
4. Two screws (35).
5. Washer solvent container (36).
6. Washer pump (37) from container.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Washer pump (37) in solvent container (36).

Important
^ Make sure washer pump is pushed all the way into the solvent container recess and seal.

2. Solvent container with two screws (35).
3. Electrical connector (33) and washer hose (34).
4. Washer solvent.
5. Negative battery cable on battery.
