Chart #4 One Window Is Inoperative

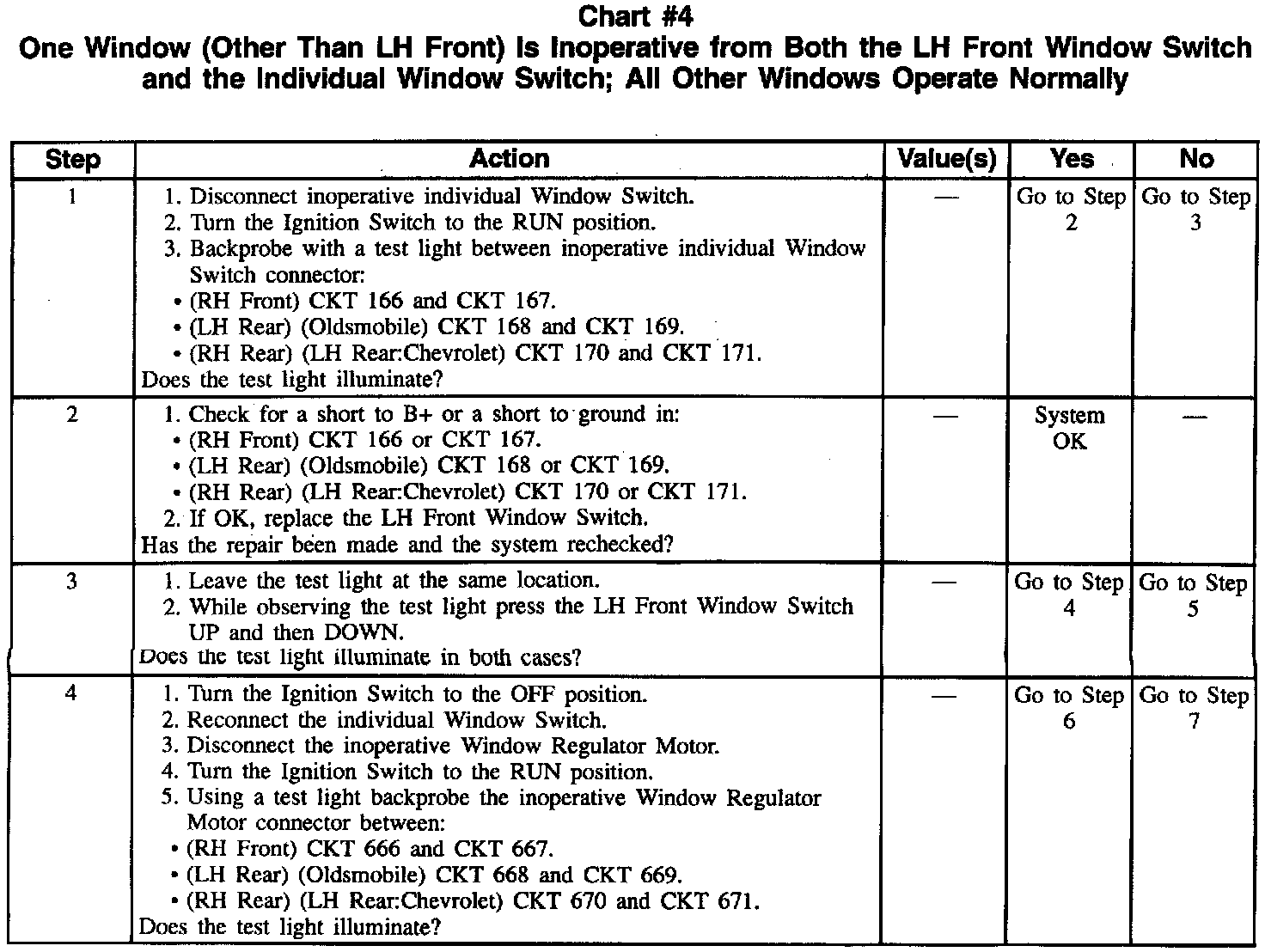

Chart #4 One WDO Is INOP From Both The LH Front WDO SW And The Individual WDO SW (Part 1 Of 2):

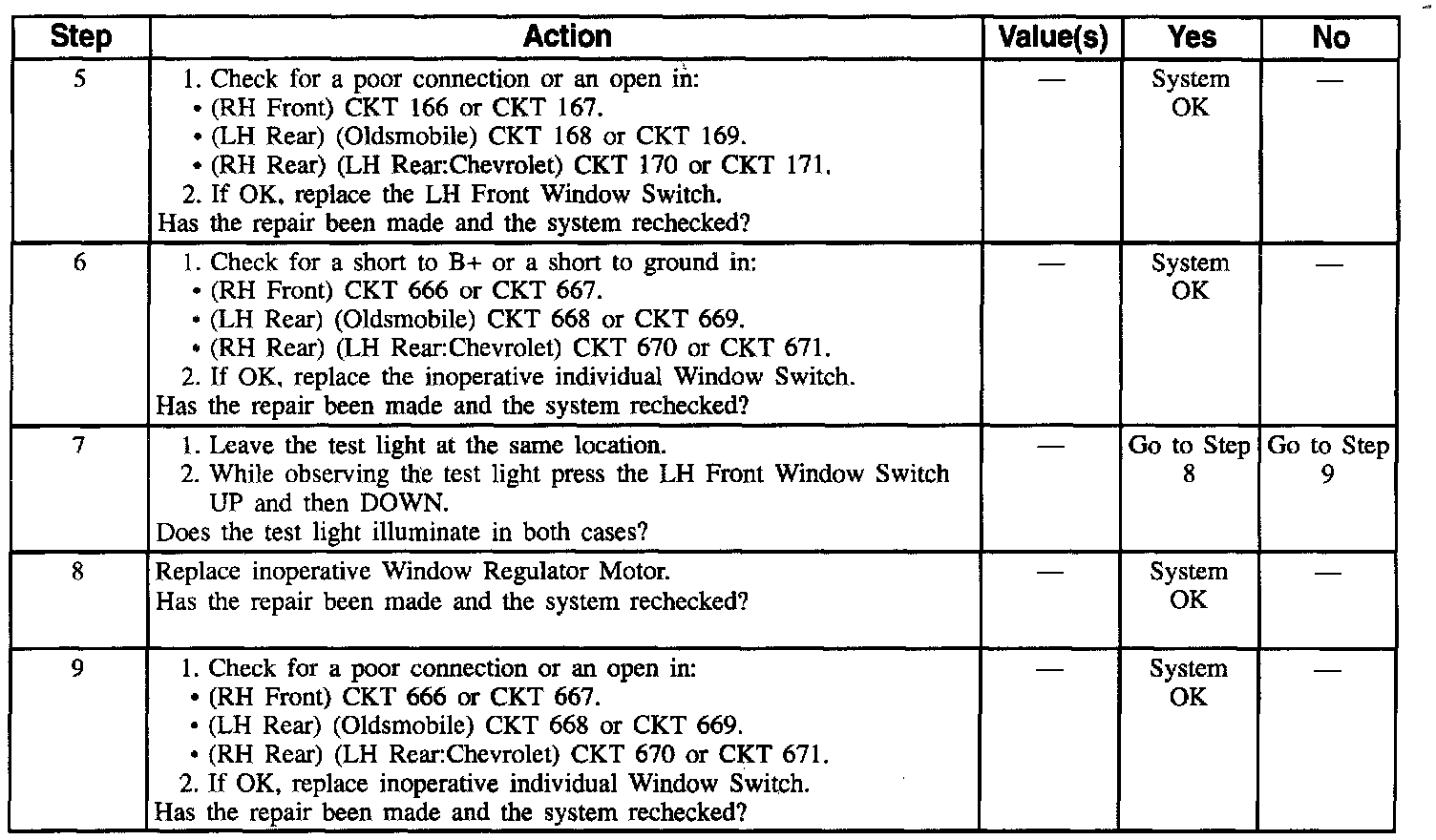

Chart #4 One WDO Is INOP From Both The LH Front WDO SW And The Individual WDO SW (Part 2 Of 2):
