Replacement

TOOL REQUIRED
J 37096 Flex Plate Holding Tool

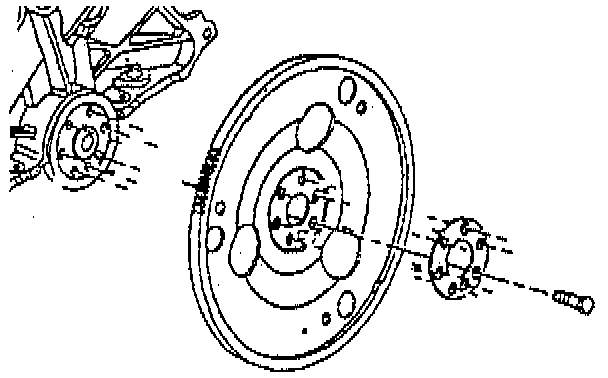

REMOVAL
1. Remove the automatic transaxle.
2. Remove the flex plate bolts.
3. Remove the flex plate retainer.
4. Remove the flex plate.
5. Clean the flex plate bolt threads and bolt holes.

INSTALLATION
1. Install the flex plate.
2. Install the flex plate retainer.
3. Install the flex plate bolts. Tighten the bolts to 83 Nm (61 lb ft).
4. Install the automatic transaxle.
