Console Shift, Control Range Selector Lever Cable End

CAUTION: The automatic transaxle range selector lever cable is made out of two cable sections. After initial connection, never separate the two metal couplings from one another. Integrity of the connection of the two metal couplings will be lost if separation of the two metal couplings occurs. When servicing the transaxle, remove the cable at the automatic transaxle range selector lever and automatic transaxle range selector lever cable bracket. If either section of the cable needs to be replaced, replace both cable sections. Loss of connection integrity of the two metal couplings can cause loss of transaxle shift control which could result in personal injury.

REMOVE OR DISCONNECT

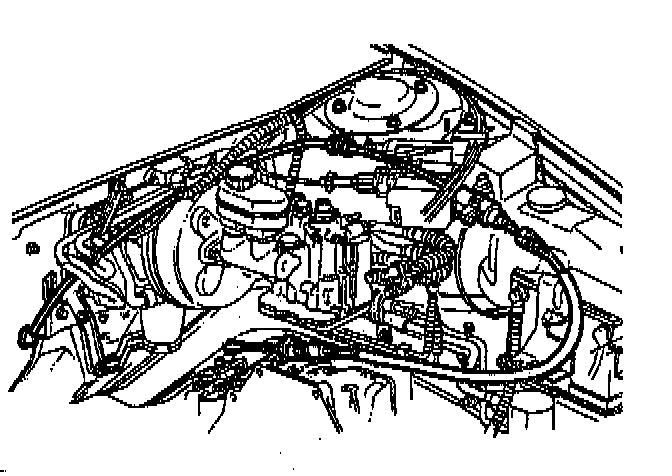

1. Dash side automatic transaxle range selector lever cable from the wiring harness clip.
2. Console trim, storage box, courtesy lamp and console.

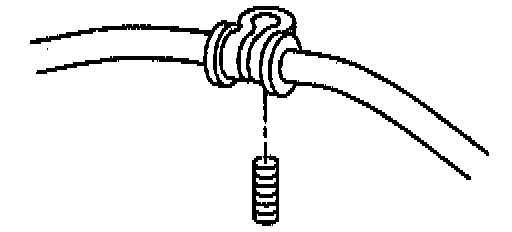

3. Automatic transaxle range selector lever cable retaining clips and cable at console shift control.
4. Pull carpet back to expose the automatic transaxle range selector lever cable.

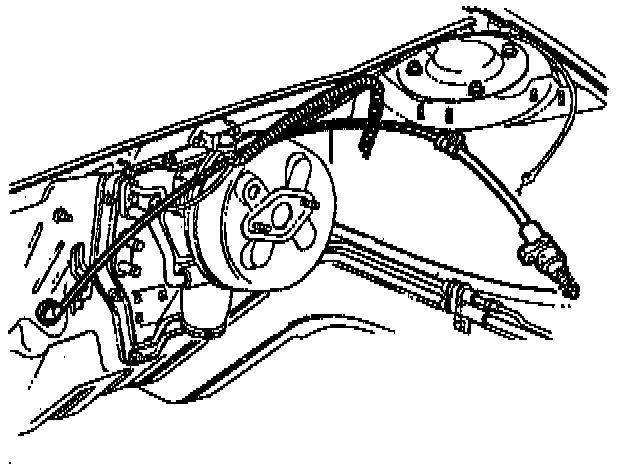

5. Automatic transaxle range selector lever cable through hole in cowl.

INSTALL OR CONNECT

NOTICE:
- Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
- Do not use any type of grease to retain parts during assembly of this unit. Greases other than the recommended assembly lube will change transaxle fluid characteristics and cause undesirable shift conditions and/or filter clogging. It is recommended that TRANSJEL (tm) J 36850 or equivalent be used during assembly.

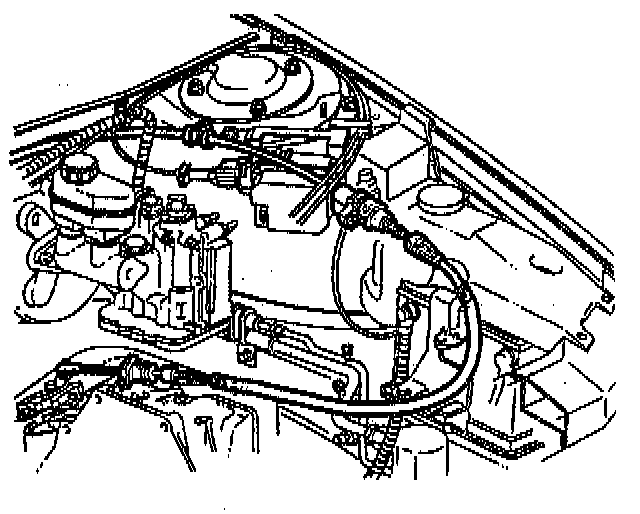

1. Properly route and position the automatic transaxle range selector lever cable.
2. Carpet into position.
3. Automatic transaxle range selector lever cable at console and retaining clips.
4. Console, courtesy lamp, storage box and console trim.
5. Dash side automatic transaxle range selector lever cable to the wiring harness clip.
