Column Shift, Range Selector Lever Cable End

REMOVE OR DISCONNECT

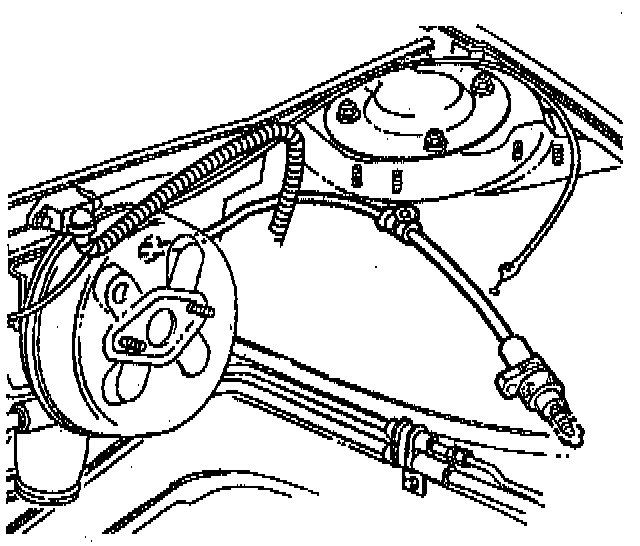

1. Dash side automatic transaxle range selector lever cable retainer from stud.
2. Left sound insulator.
3. Steering column trim panel.

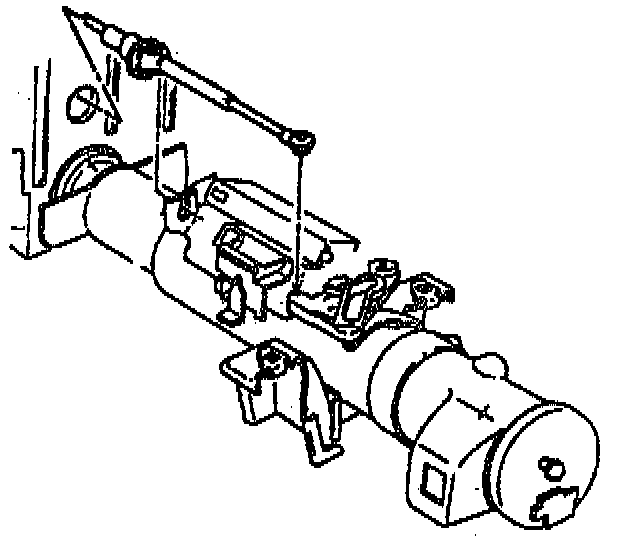

4. Automatic transaxle range selector lever cable from the shift control lever.
5. Automatic transaxle range selector lever cable from the steering column bracket.

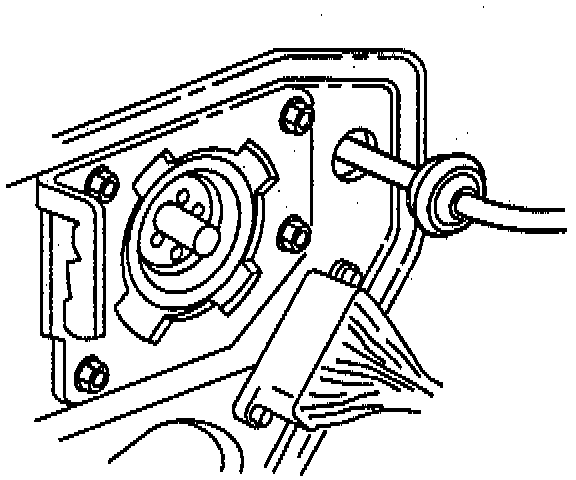

6. Automatic transaxle range selector lever cable through hole in dash.

INSTALL OR CONNECT

NOTICE:
- Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
- Do not use any type of grease to retain parts during assembly of this unit. Greases other than the recommended assembly lube will change transaxle fluid characteristics and cause undesirable shift conditions and/or filter clogging. It is recommended that TRANSJEL (tm) J 36850 or equivalent be used during assembly.

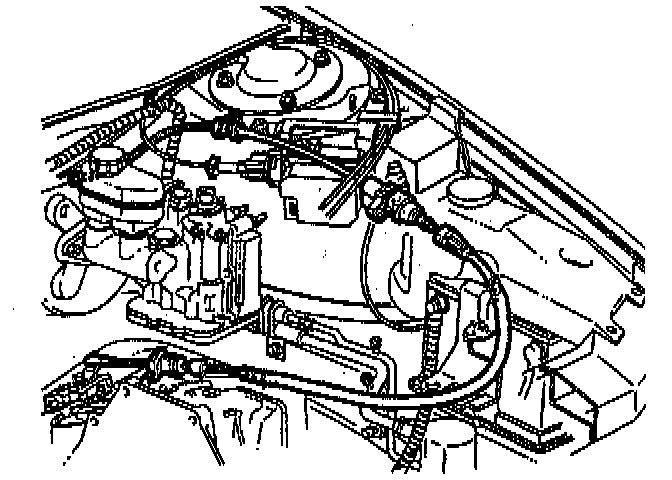

1. Properly route and position the automatic transaxle range selector lever cable.
2. Automatic transaxle range selector lever cable to the steering column bracket.
3. Automatic transaxle range selector lever cable to the shift control lever.
4. Steering column trim panel.
5. Left sound insulator.
6. Dash side automatic transaxle range selector lever cable retainer to stud.

Adjust
^ Transaxle side automatic, transaxle range selector lever cable.
