Automatic Transaxle Shift Indicator Cable

REMOVE OR DISCONNECT
1. Steering column.

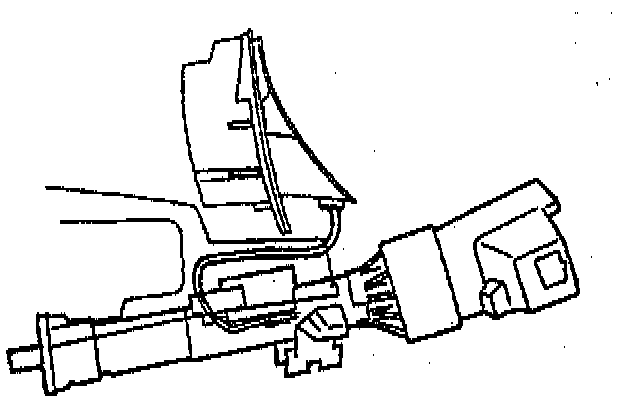

2. Pull out shift indicator cable clip from square hole in steering column at the top.

INSTALL OR CONNECT

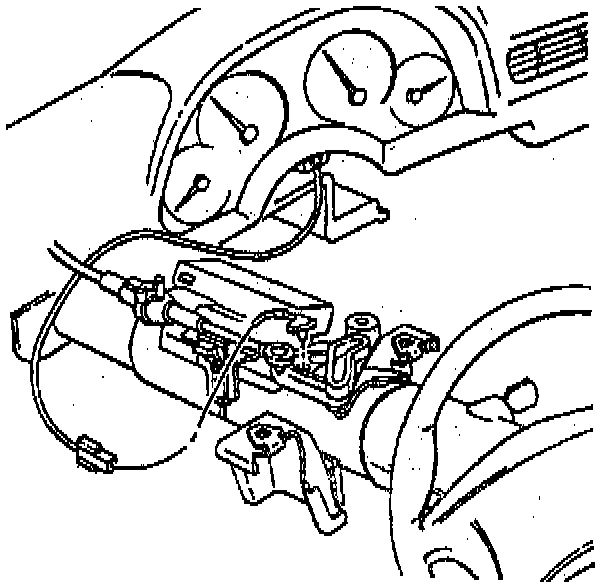

1. Route shift indicator cable down from instrument cluster.
2. Route shift indicator cable underneath the shifter cable and along the side of the column.
3. Slide shift indicator cable thru slot and push connector into t-adjuster.
4. Snap in the shift indicator cable clip into square hole in steering column from the top.
5. Steering column.

Important: The cable must not become pinched.
