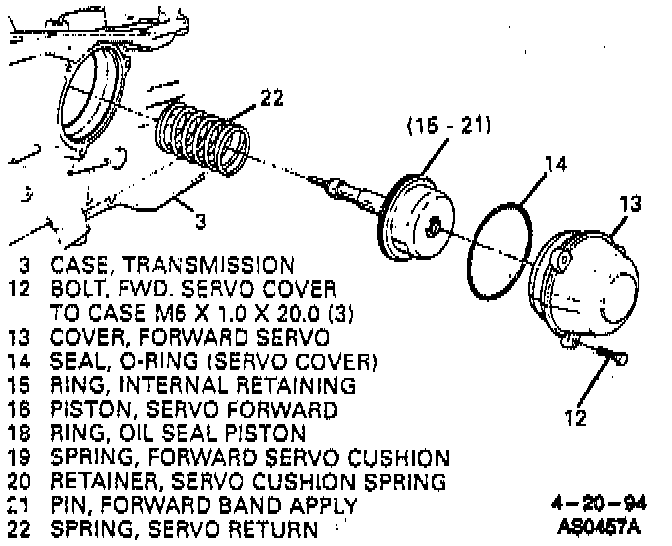

Forward Servo

^ Tools Required:
- J 28467-B Engine Support Fixture
- J 28467-90A Engine Support Adapter
- J 36462-A Engine Support Adapter Leg Set

REMOVE OR DISCONNECT
1. Install J 28467-B, J 28467-9OA and J 36462-A.
2. Raise vehicle and suitably support.
3. Power steering gear heat shield.
4. Power steering rack and pinion, and hang from exhaust pipe.
5. Transaxle mount.
6. Engine mount.
7. Power steering lines from right side of frame.
8. Support rear of frame with jackstand.
9. Loosen front frame bolts/screws.
10. Rear frame bolts/screws.
11. Adjust jackstand to lower rear of frame.
12. Position drain pan under forward servo cover.
13. Bolts/screws attaching servo cover to transaxle case.
14. Forward servo cover, servo piston, sealing ring, apply pin, servo spring retainer and servo spring.

INSTALL OR CONNECT

NOTICE:
- Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.
- Do not use any type of grease to retain parts during assembly of this unit. Greases other than the recommended assembly lube will change transaxle fluid characteristics and cause undesirable shift conditions and/or filter clogging. It is recommended that TRANSJEL (tm) J 36850 or equivalent be used during assembly.

1. Servo spring, servo spring retainer, apply pin, sealing ring, servo piston and forward servo cover.
2. Forward servo cover attaching bolts/screws.
- Tighten bolts/screws to 11 Nm (97 inch lbs.).
3. Adjust jackstand to raise rear of frame.
4. Frame bolts/screws.
5. Remove support from rear of frame.
6. Power steering lines to right side of frame.
7. Engine mount.
8. Transaxle mount.
9. Power steering rack and pinion.
10. Power steering gear heat shield.
11. Lower vehicle.
12. Remove J 28467-B, J 28467-9OA and J 36462-A.
