Home >> Oldsmobile >> 1997 >> Cutlass Supreme V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Instrument Panel (I/P) Fuse Block - Fuses >> Fuse 19

Fuse 19

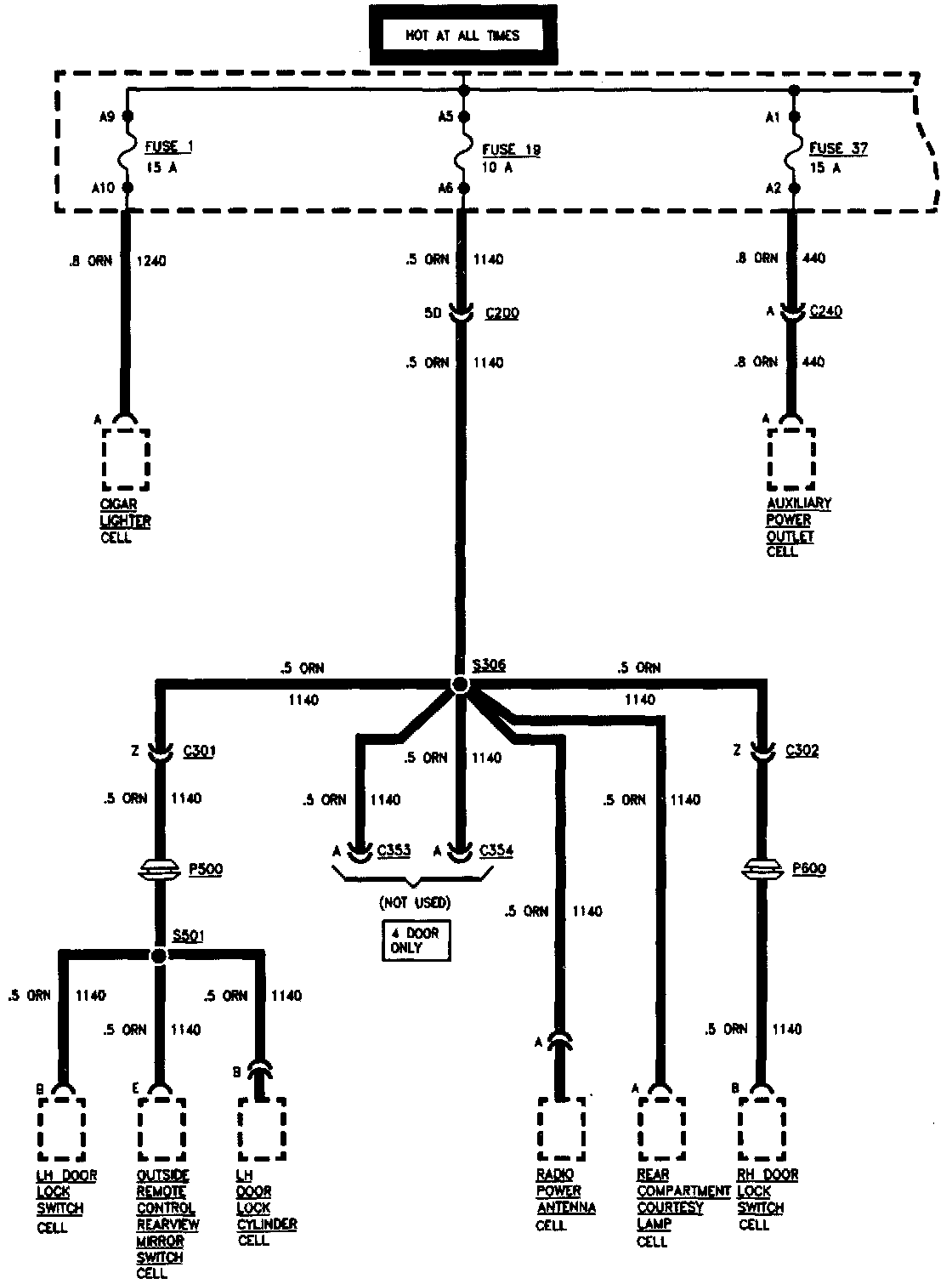

Cigar Lighter (1), Power Accessory #1 (19) And Auxiliary Power (37) Fuses:
