Instrument Panel (I/P) Fuse Block - Fuses
>>

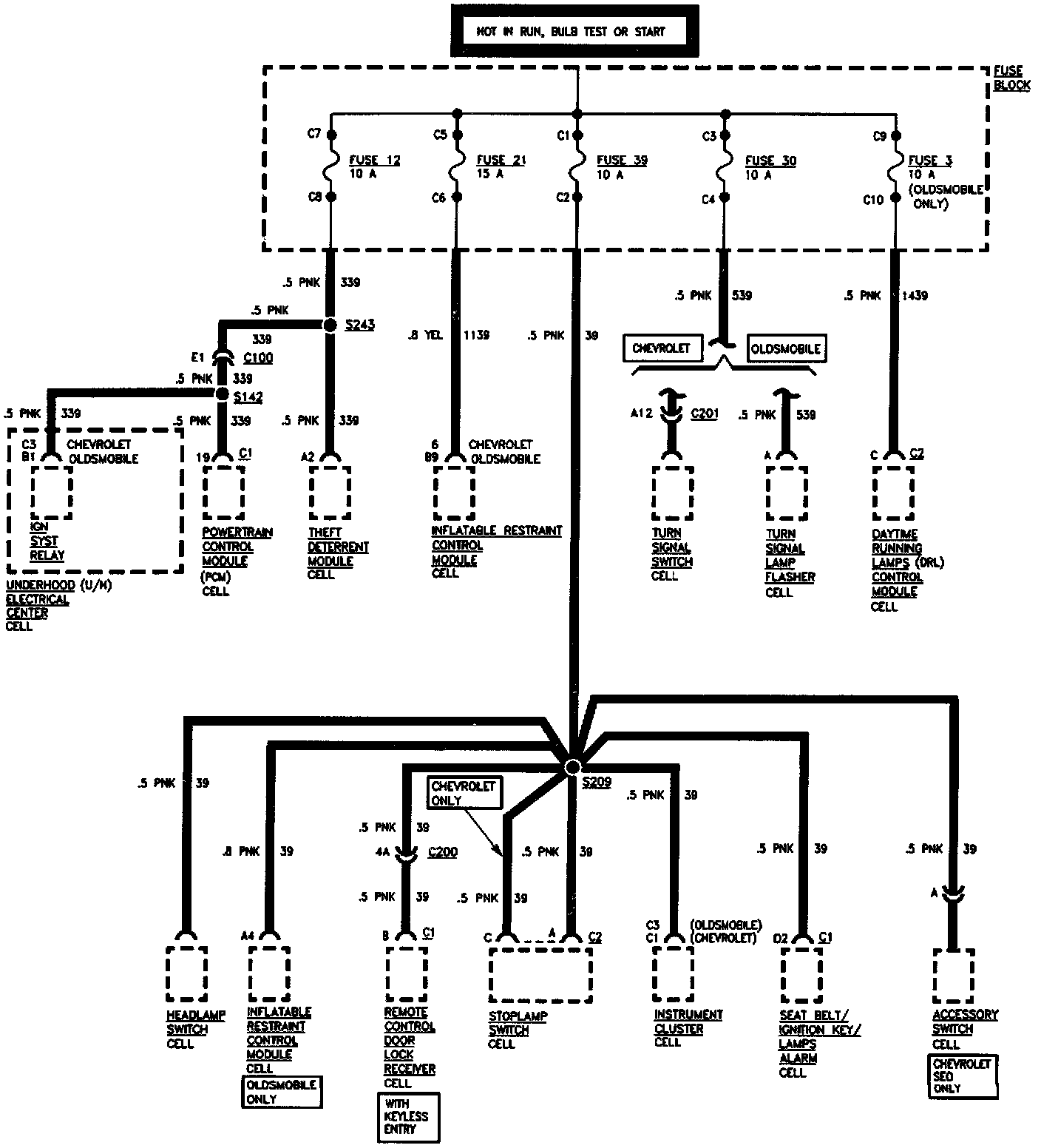

Fuse 12
Fuse 12
DRL MDL (3), Anti-Theft (12), Air Bag (21), Turn Signal (30) And I/P Electronics Ignition Feed (39) Fuses:
