Rear Camber Adjustment

Remove or Disconnect
1. Raise vehicle and suitably support.
2. Tire and wheel.
3. Strut from vehicle.
4. Place strut in vise.

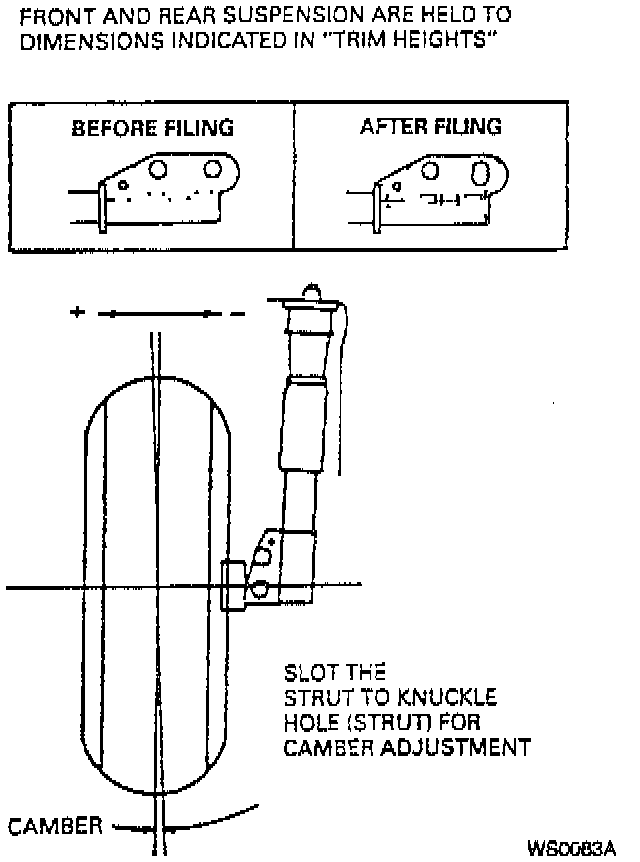

- At lower strut to knuckle attaching hole, file hole lateral (oblong).

Install or Connect
1. Strut to vehicle.
- Do not tighten bolts at this time.
2. Strut to body bolts and brake hose bracket.
3. Tires and wheels.
4. Lower vehicle.
Adjust
- Camber.
- Tighten strut to knuckle nuts to 122 Nm (90 ft. lbs.).

Important: Toe must be checked after changing camber. Refer to "Toe Adjustment."
