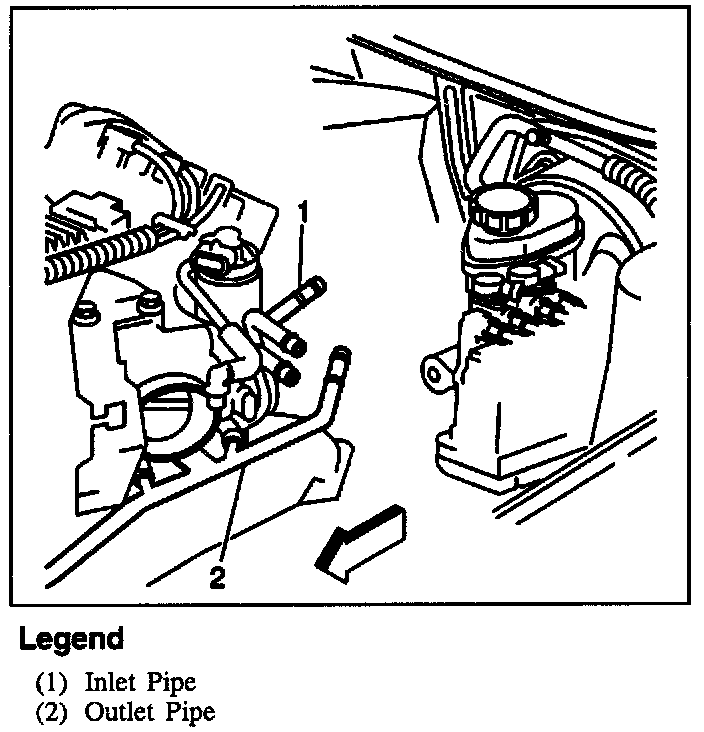

Inlet Pipe

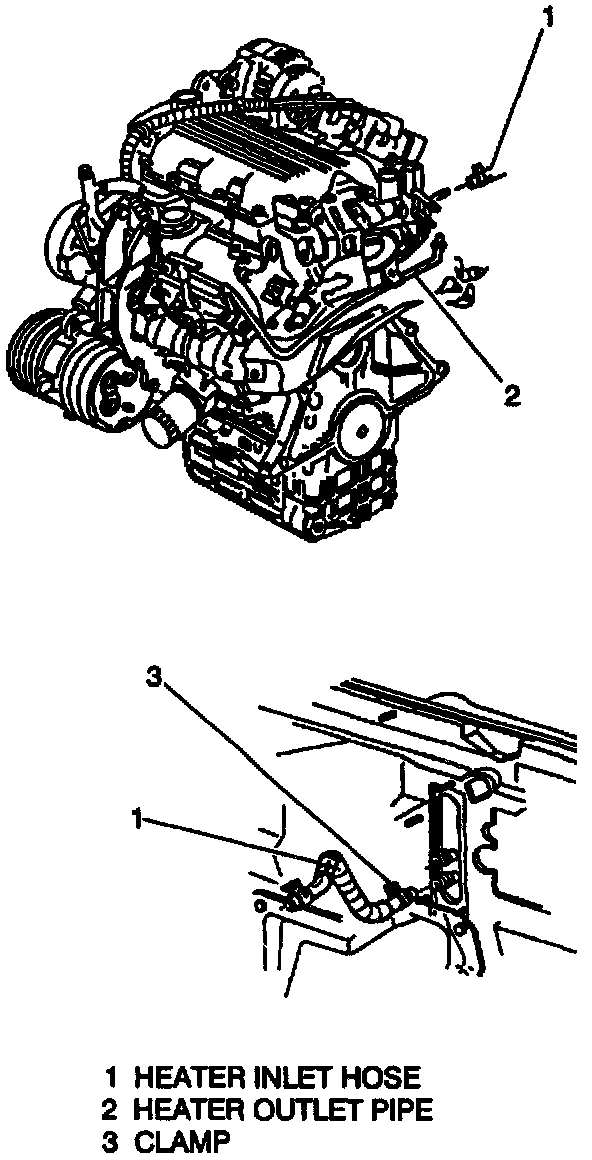

Heater Pipe Routing:

Heater Hoses/Pipes:

Remove or Disconnect

1. Drain cooling system.
2. Air cleaner and duct assembly.
3. Hose from inlet pipe.
4. Inlet pipe mounting nut.
5. Inlet pipe from quick disconnect nipple.
6. Inlet pipe.

Install or Connect

1. Inlet pipe.
2. Inlet pipe to quick disconnect nipple.
3. Inlet pipe mounting nut.

Tighten
^ Nut to 7 N.m (62 lb. in.).

4. Hose to inlet pipe.
5. Air cleaner and duct assembly.
6. Refill cooling system.
