Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1997
>>
Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls
>>
Auto Temp Control
Auto Temp Control

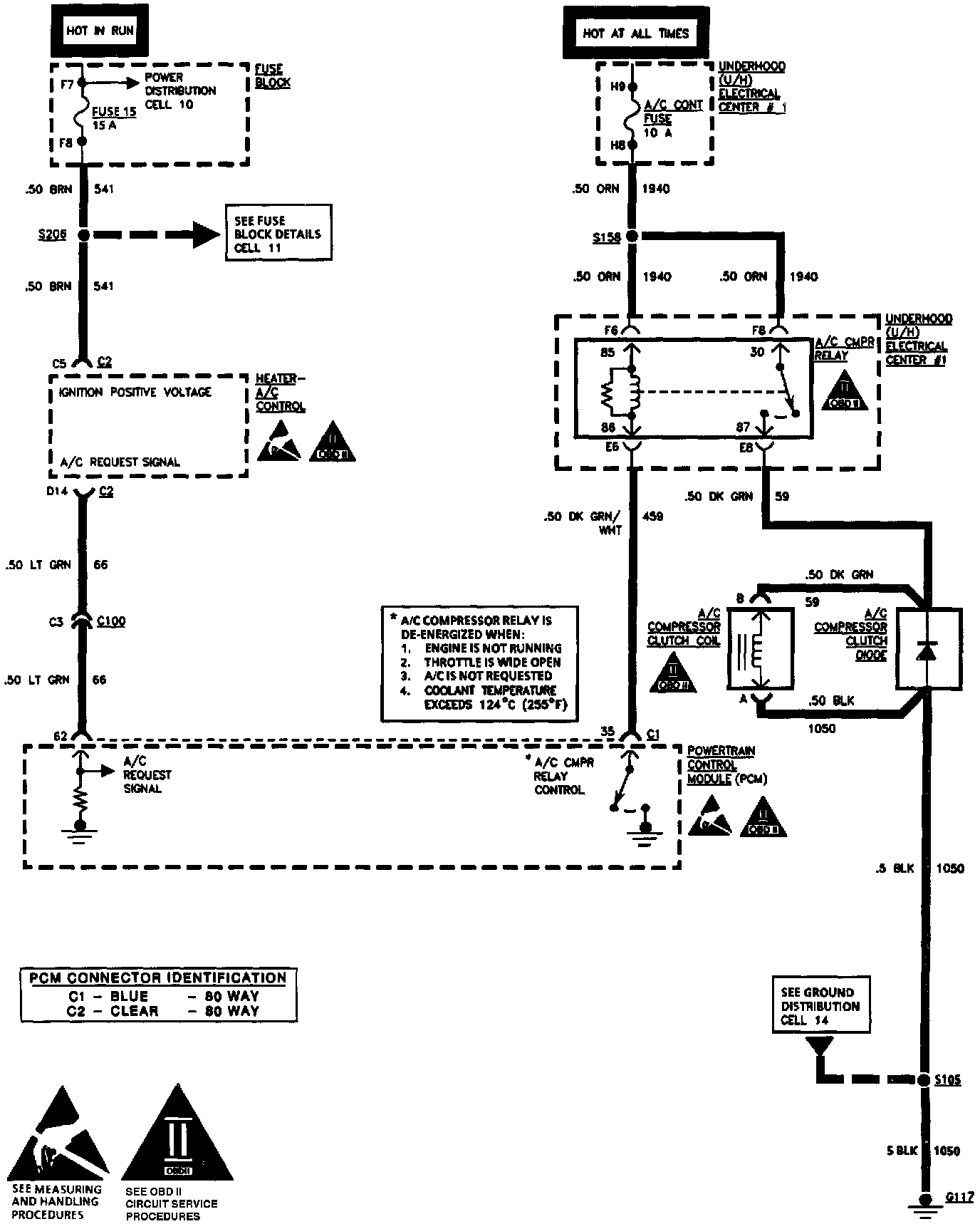

HVAC Compressor Control (CJ2):
