Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Controls
>>
Electronic Control
Electronic Control

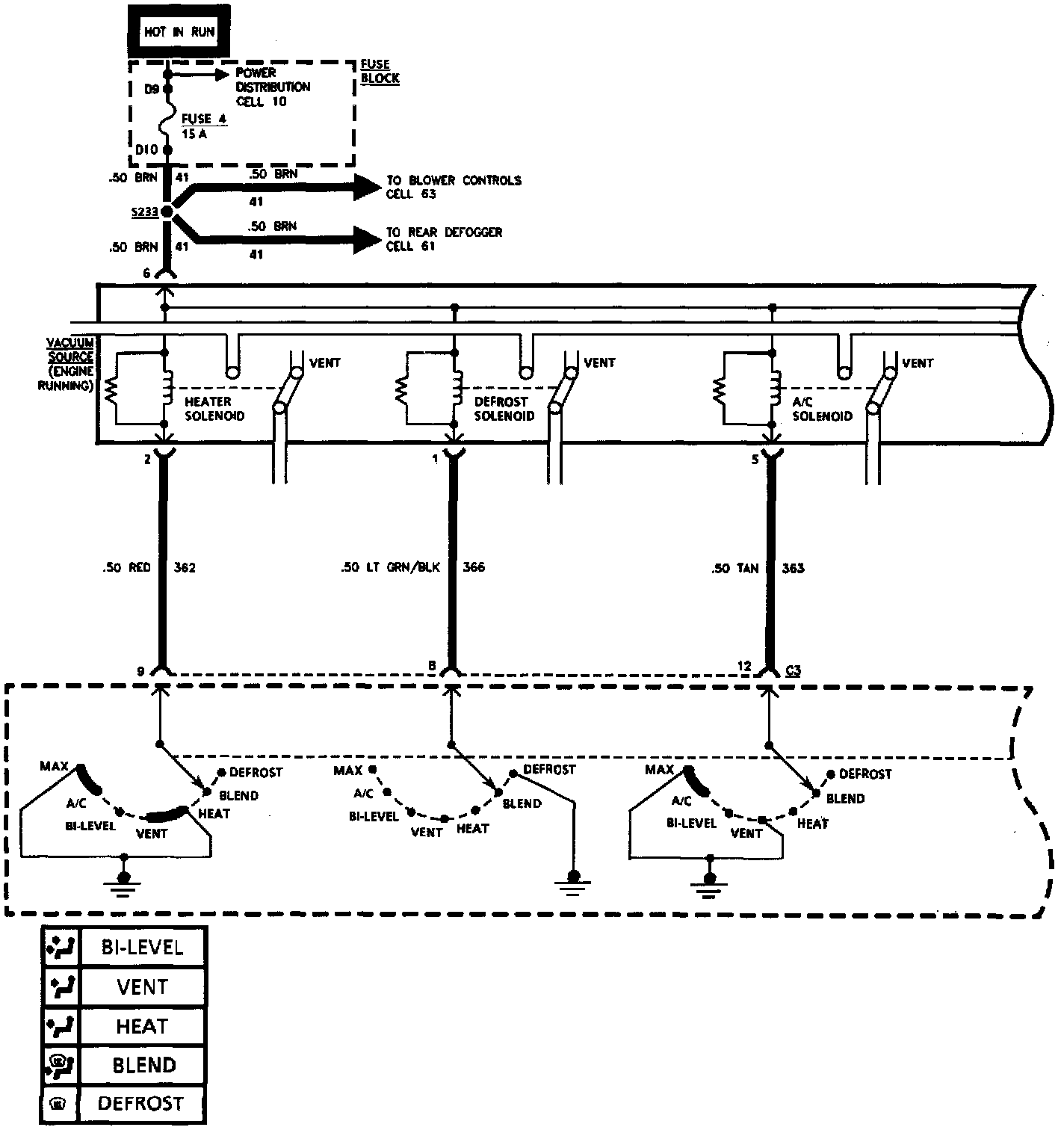

HVAC Air Delivery And Temperature Control (C67) (Part 1 Of 2):

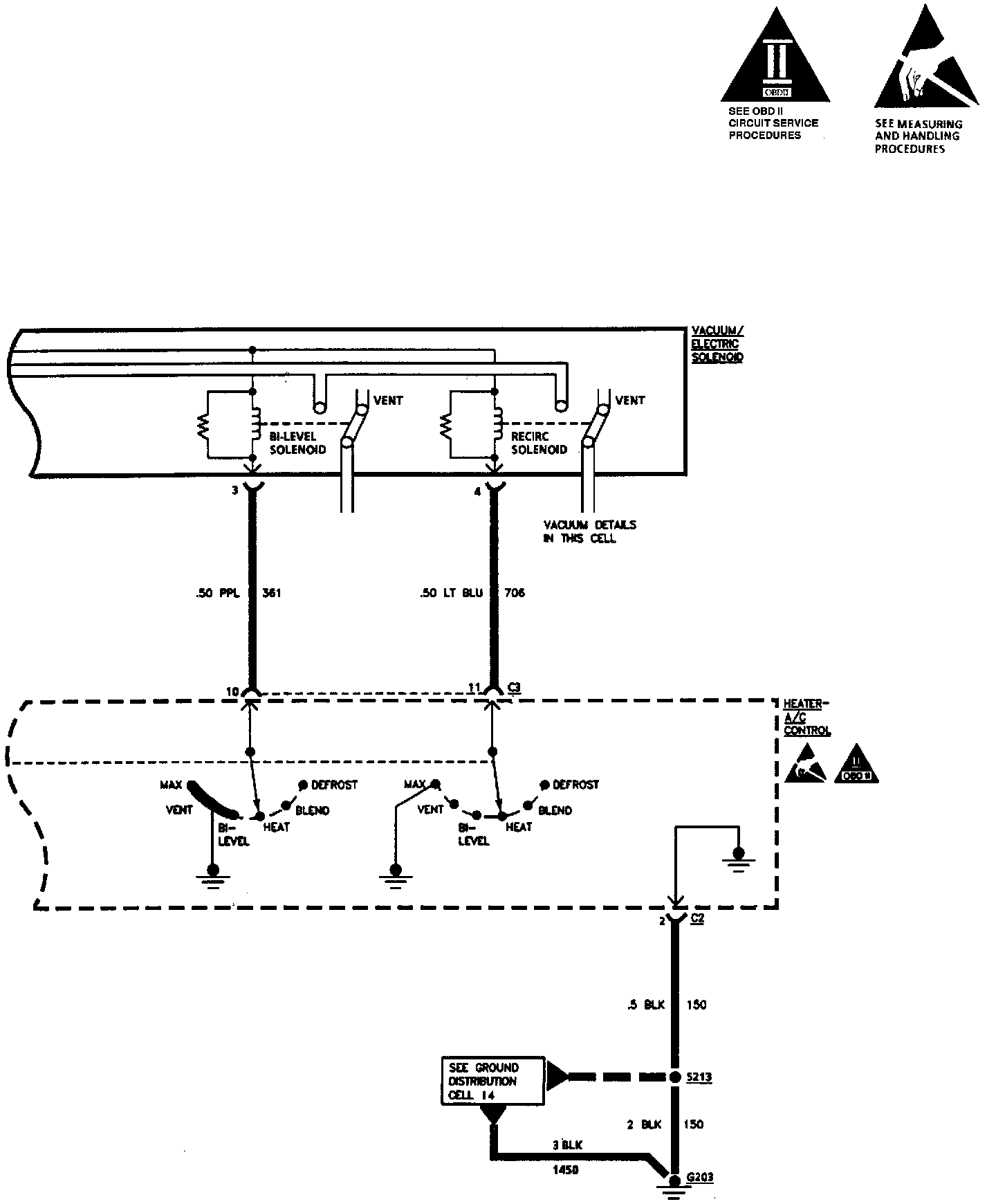

HVAC Air Delivery And Temperature Control (C67) (Part 2 Of 2):
