Auto Temp Control

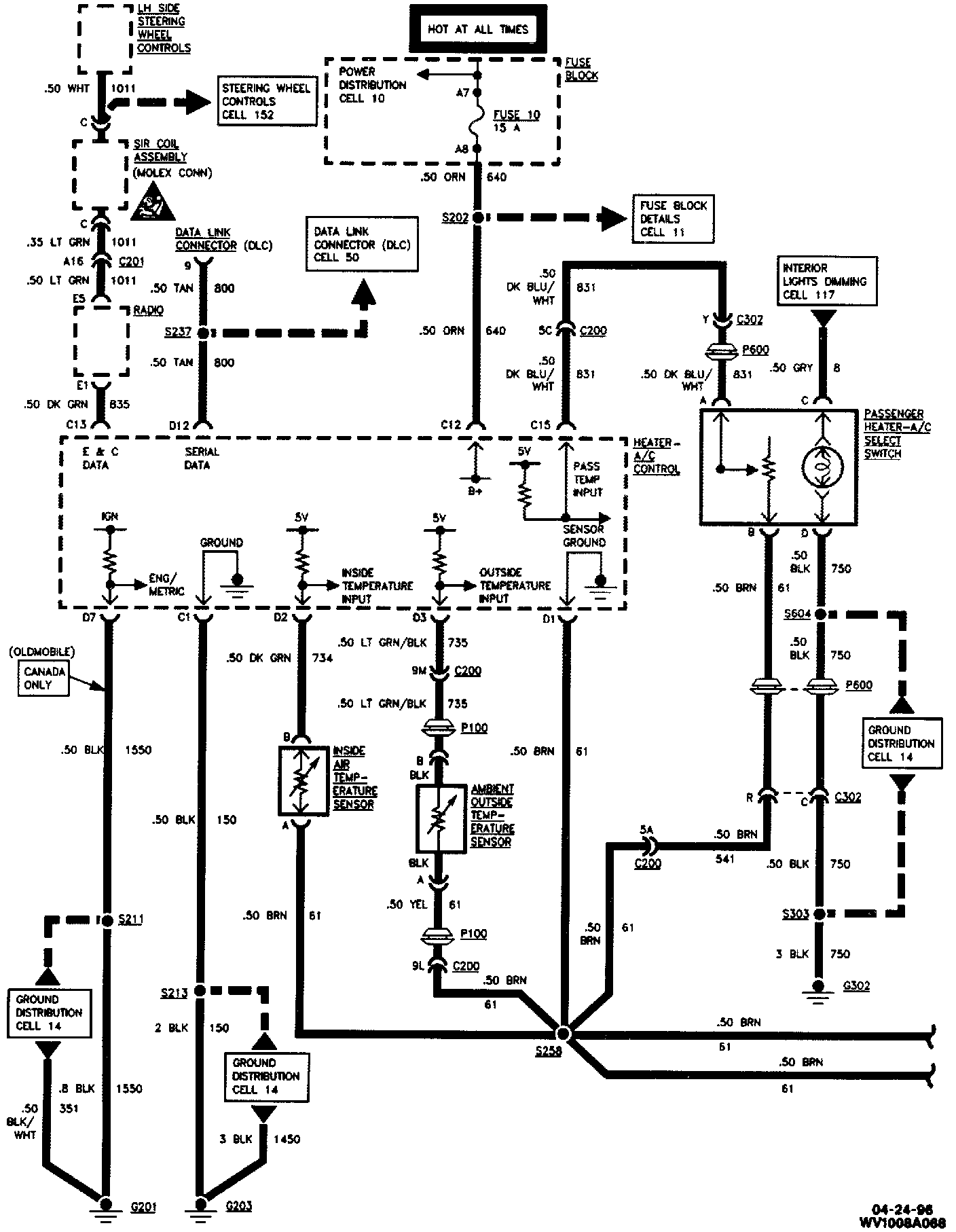

HVAC Air Delivery And Temperature Control (CJ2) (Part 1 Of 4):

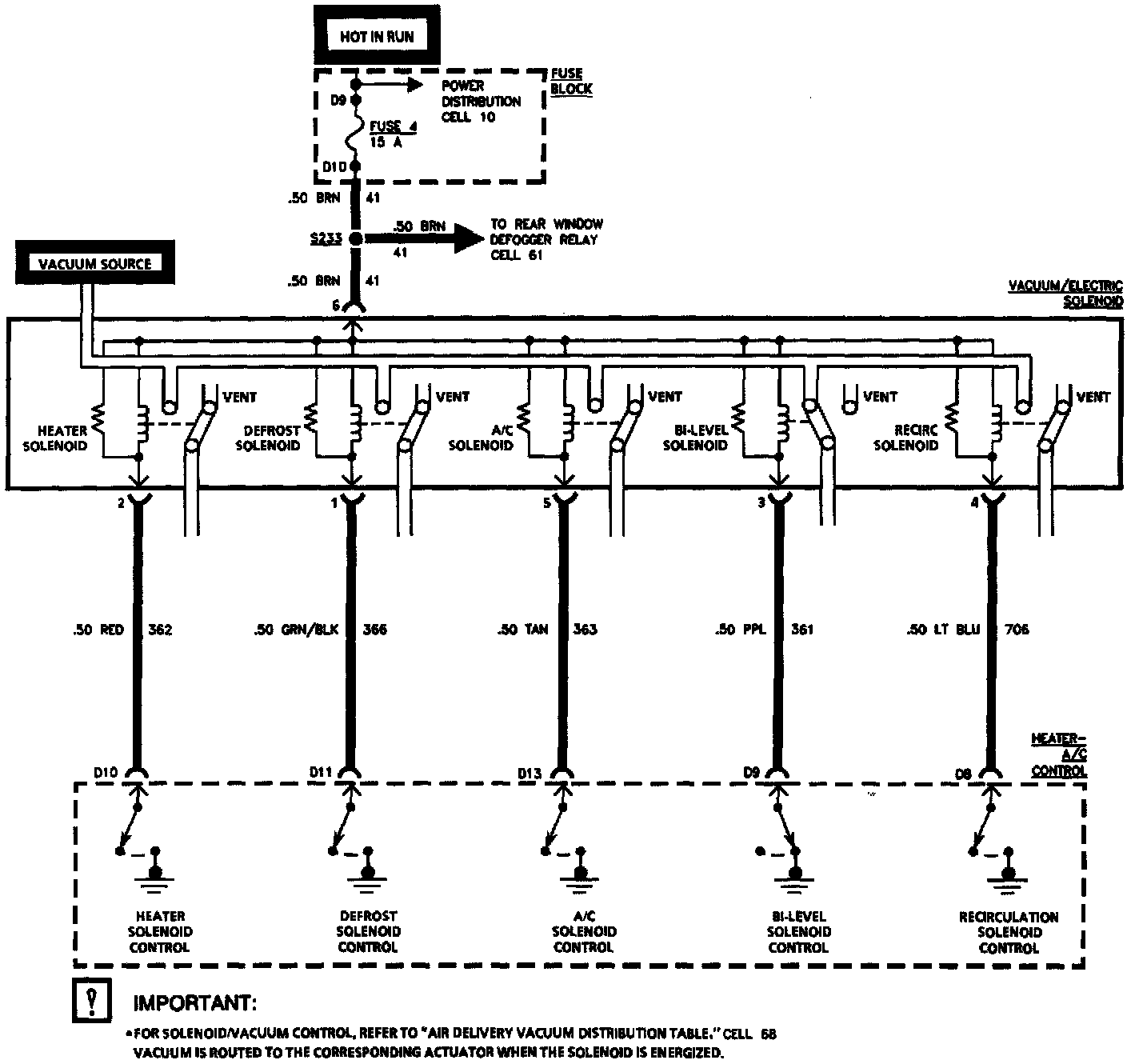

HVAC Air Delivery And Temperature Control (CJ2) (Part 2 Of 4):

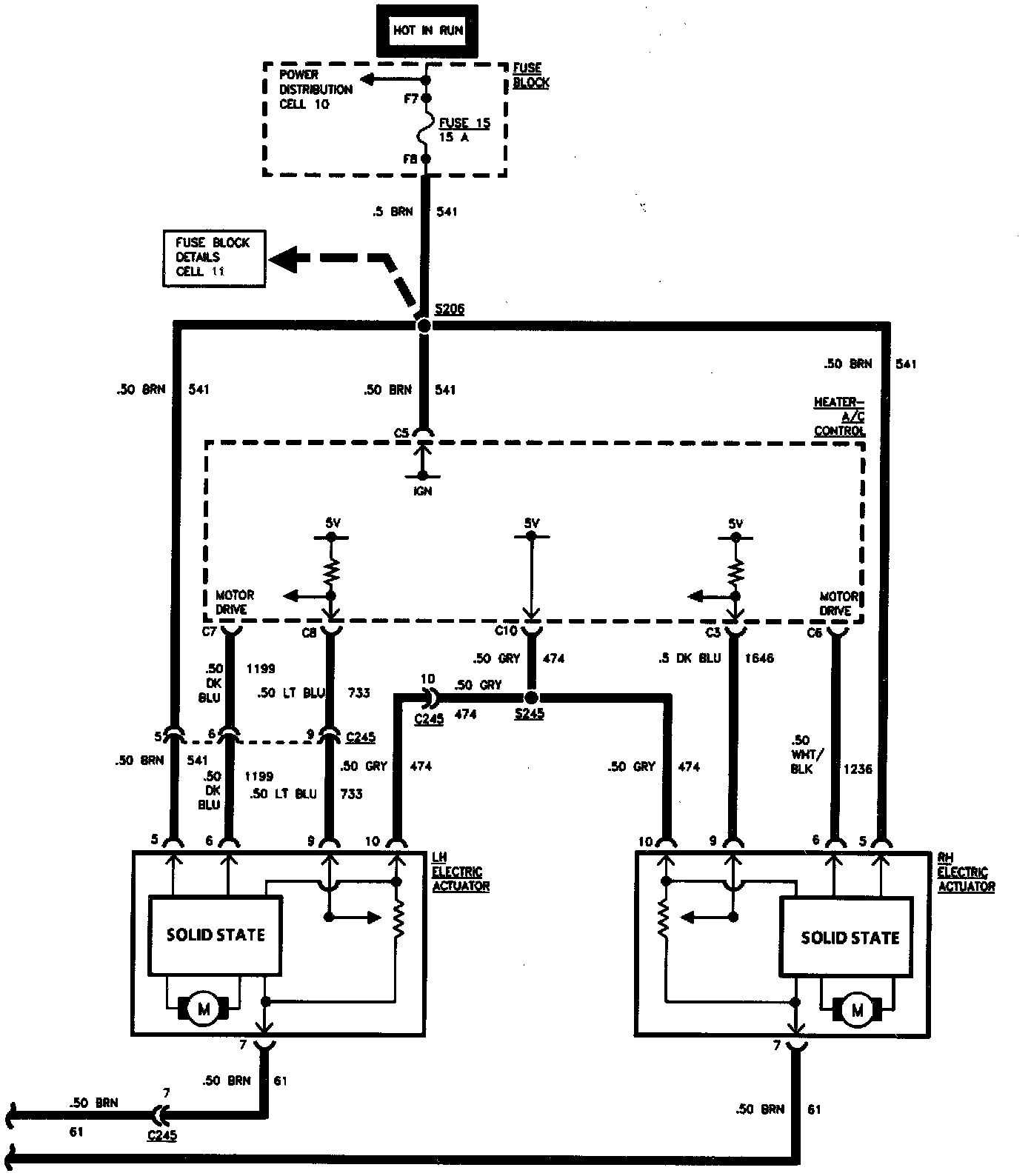

HVAC Air Delivery And Temperature Control (CJ2) (Part 3 Of 4):



HVAC Air Delivery And Temperature Control (CJ2) (Part 4 Of 4):
