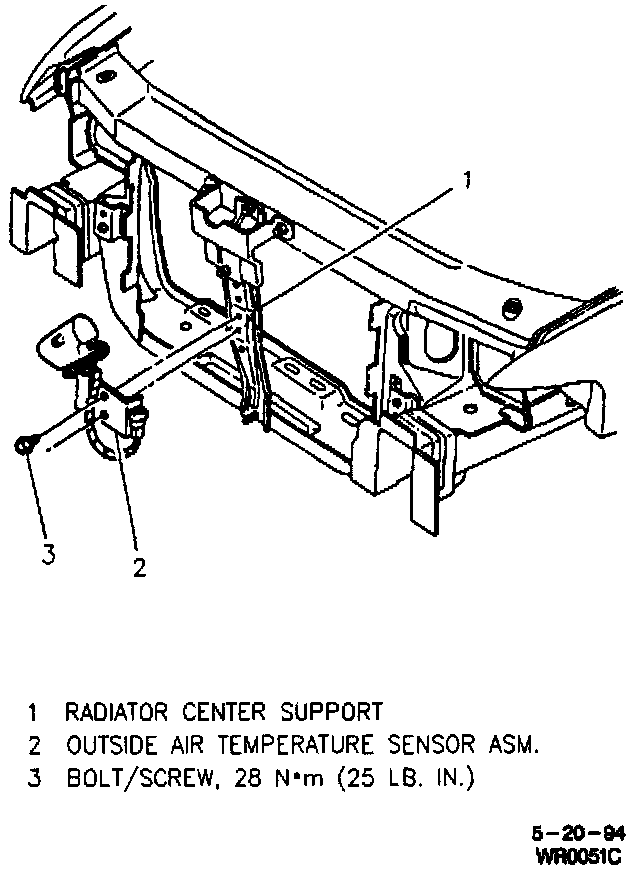

Outside Air Temperature Sensor

Outside Air Temperature Sensor:

Remove or Disconnect

1. Battery negative cable.
2. Raise vehicle and suitably support.
3. Electrical connection at temperature sensor.
4. Sensor retaining bolt/screw.
5. Sensor from vehicle.

Install or Connect

1. Position temperature sensor to vehicle.
2. Retaining bolt/screw.

Tighten
^ Bolt/screw to 28 N.m (25 lb.ft.).

3. Electrical connection at temperature sensor.
4. Lower vehicle.
5. Battery negative cable.
