Inside Air Temperature Sensor

Inside Air Temperature Sensor:

Remove or Disconnect

1. Battery negative cable.
2. Instrument panel cluster trim plate.
3. Electrical connection at temperature sensor.

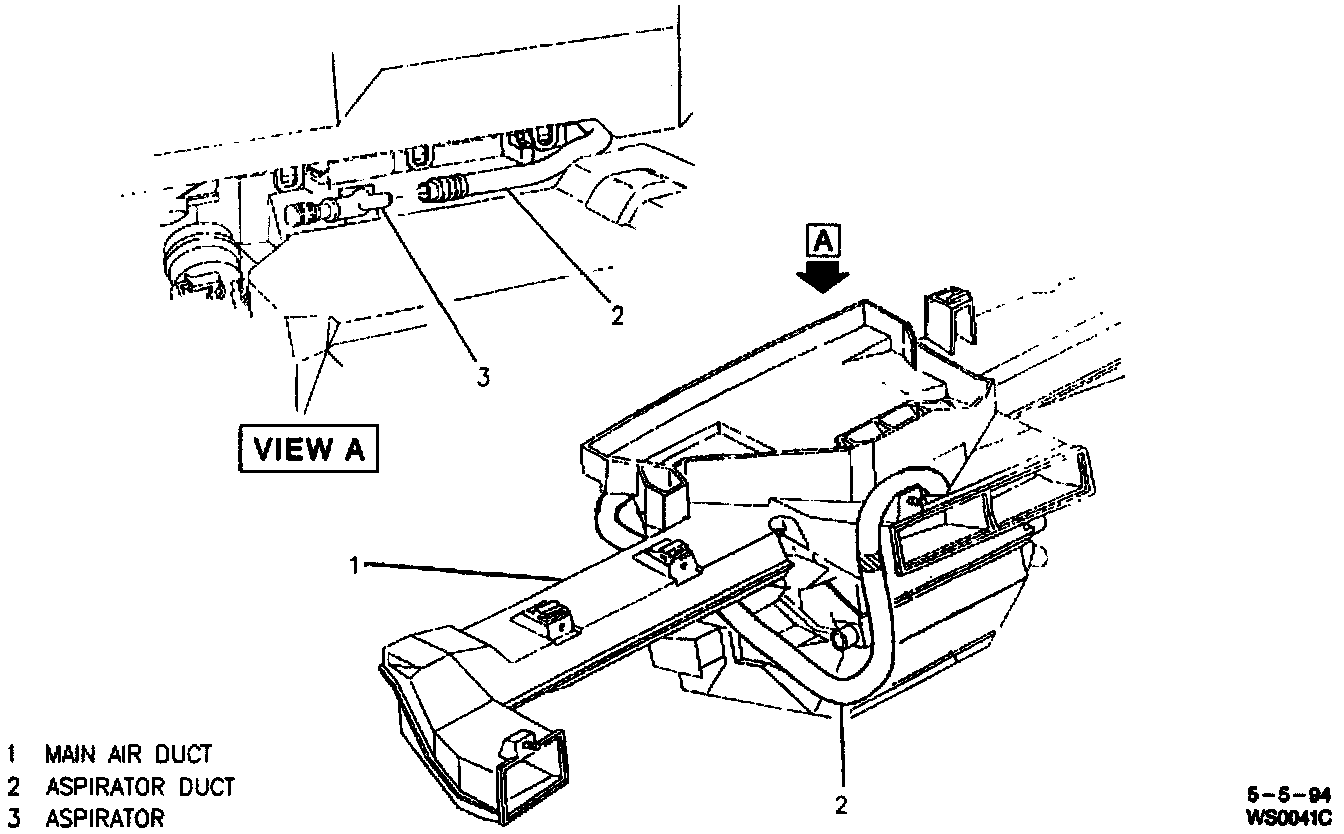

4. Aspirator duct.
5. Temperature sensor.

Install or Connect

1. Temperature sensor.
2. Aspirator duct.
^ Verify duct connected at module.
3. Electrical connection at temperature sensor.
4. Instrument panel cluster trim plate.
5. Battery negative cable.
