Main Air Distribution Duct

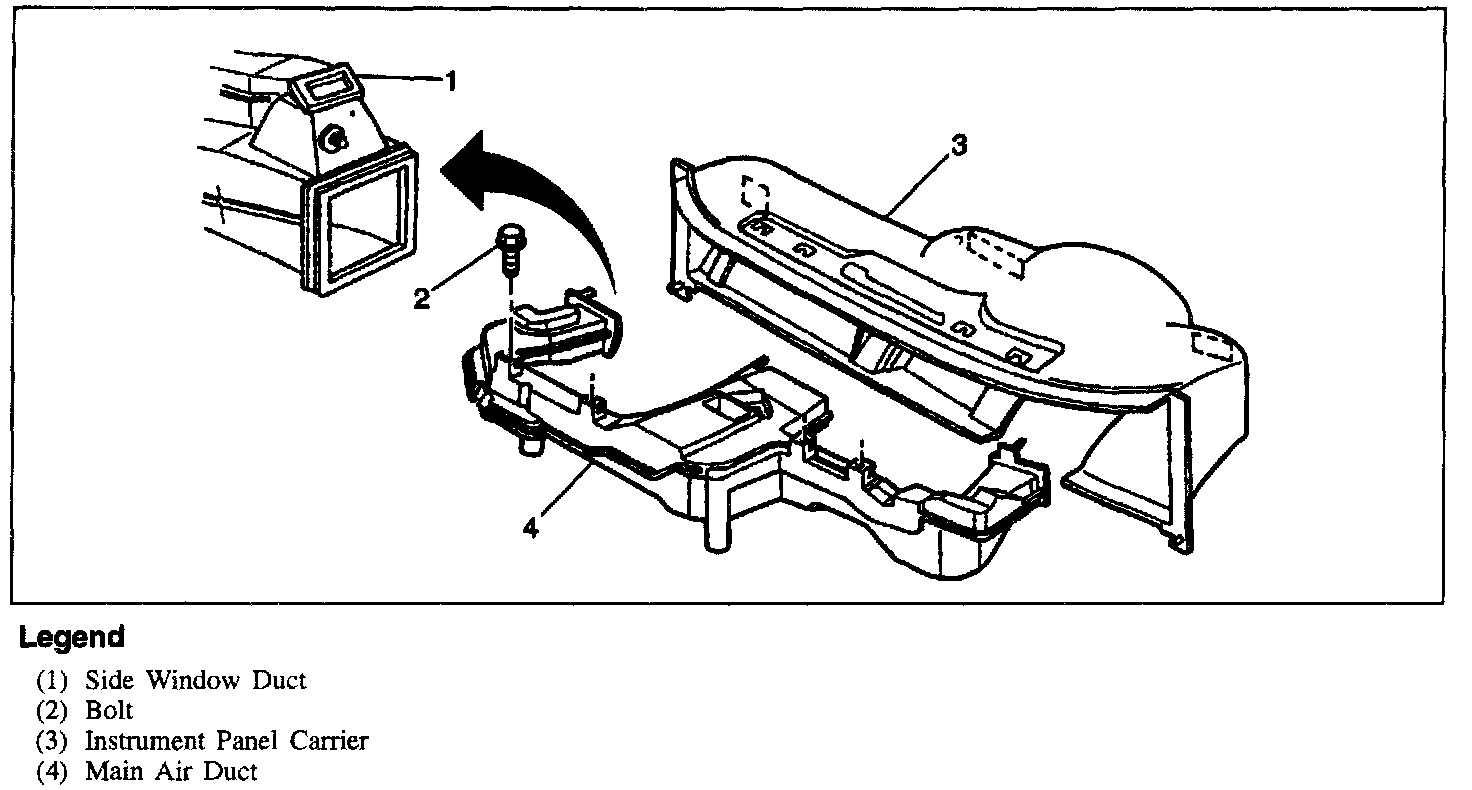

Side Window Defogger Outlets:

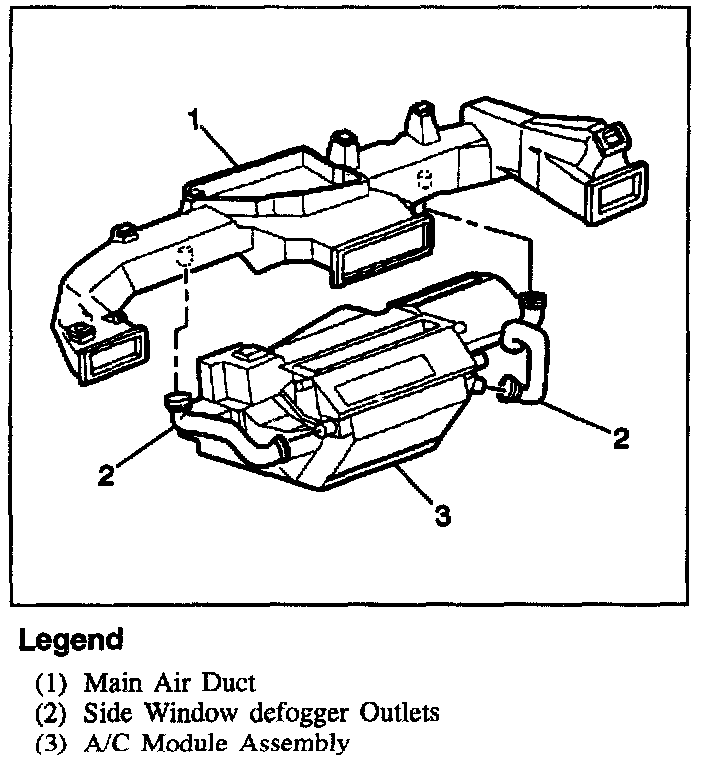

Main Air Distributer Duct:

Remove or Disconnect

1. Body hinge pillar tie bar cross car beam.
2. Main air distribution duct.

Install or Connect

1. Main air distribution duct.
2. Body hinge pillar tie bar cross car beam.
