Air Distributor Duct Replacement

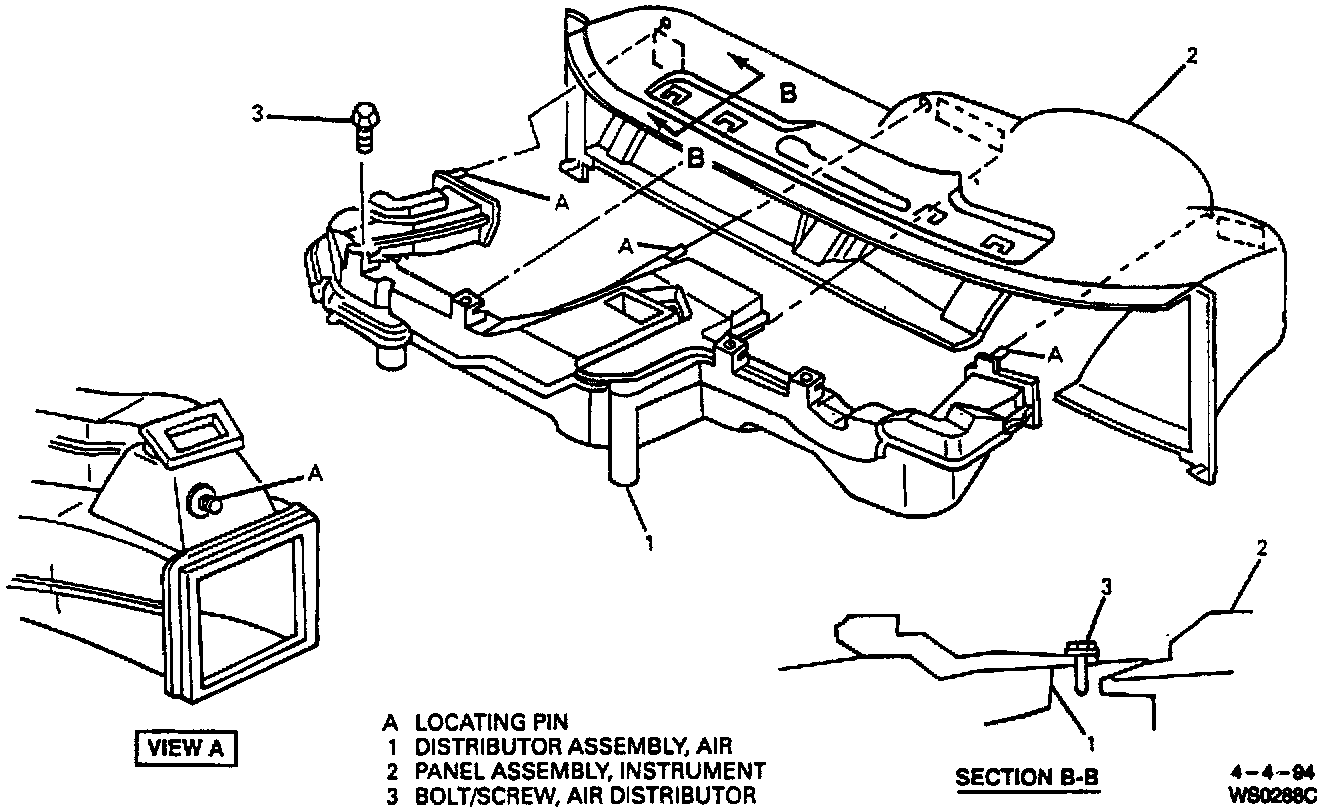

Ventilation Duct (Typical):

Figure 36

Remove or Disconnect
1. Instrument panel carrier.
2. Cross car beam.
3. Four snap-fit attachments and three locating pins.
4. Ventilation duct from instrument panel carrier.

Install or Connect
1. Ventilation duct into instrument panel carrier.
2. Align locating pins and snap attachments to secure duct.
3. Cross car beam.
4. Instrument panel carrier.
