Engine Block Heater Cord

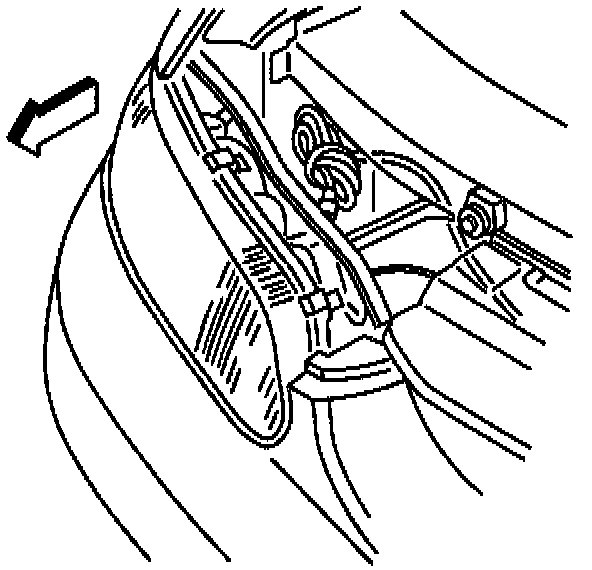

Engine Block Heater Cord Stowage:

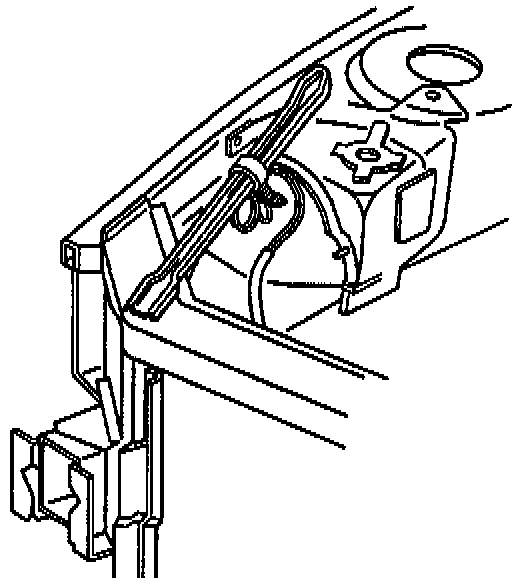

Engine Block Heater Cord Stowage:

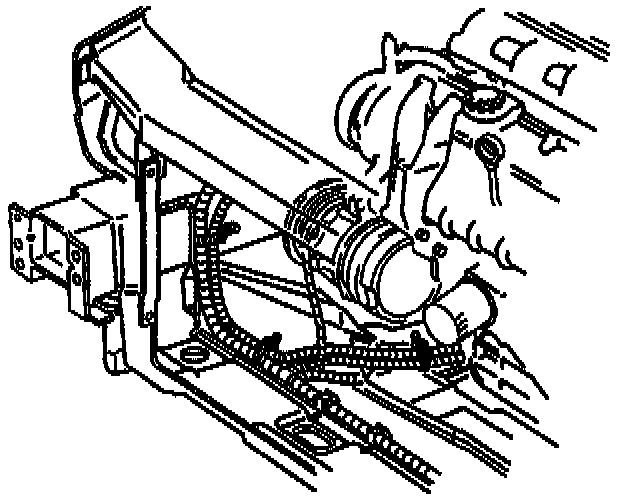

Engine Block Heater Cord Routing:

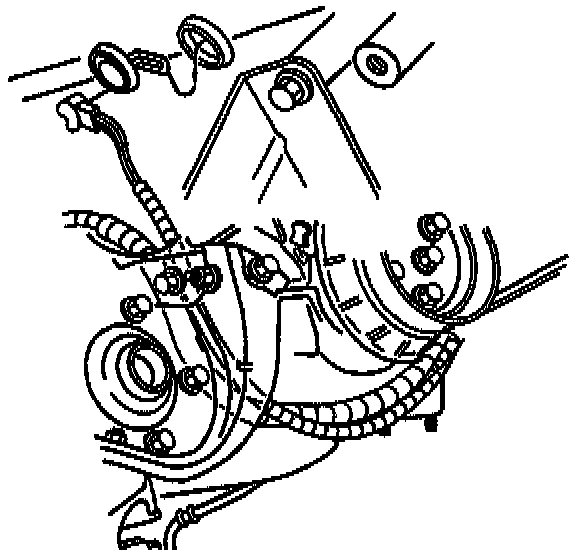

Engine Block Heater Cord Routing 3.4 Engine LQ1:

CAUTION: Perform this operation only when the engine Is cool or personal Injury may result.

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Block heater cord from engine block heater.
3. Block heater cord to engine harness straps.
4. Block heater cord.

INSTALL OR CONNECT

CAUTION: Engine block heater cord must not contact engine, exhaust pipes, manifold or any moving parts or vehicle damage and/or personal Injury may result.

1. Block heater cord.
2. Block heater cord to engine harness straps.
3. Block heater cord to engine block heater.
4. Lower vehicle.
