Home >> Oldsmobile >> 1997 >> Cutlass Supreme V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T >> Console Shift

Console Shift

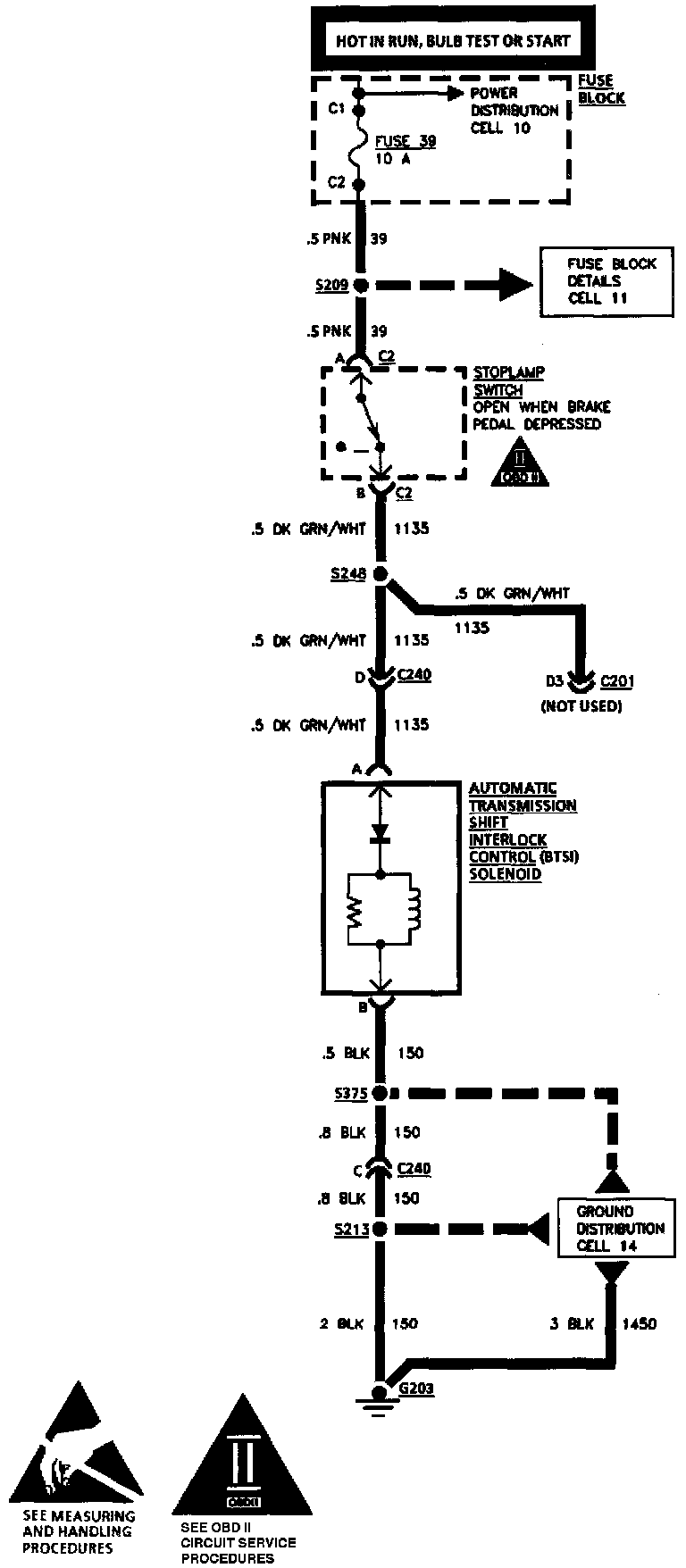

Brake Transmission Shift Interlock (BTSI): Console Shift:
