Oldsmobile
>>
1997
>>
Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
IAC Valve, Engine Oil Level Sensor
IAC Valve, Engine Oil Level Sensor

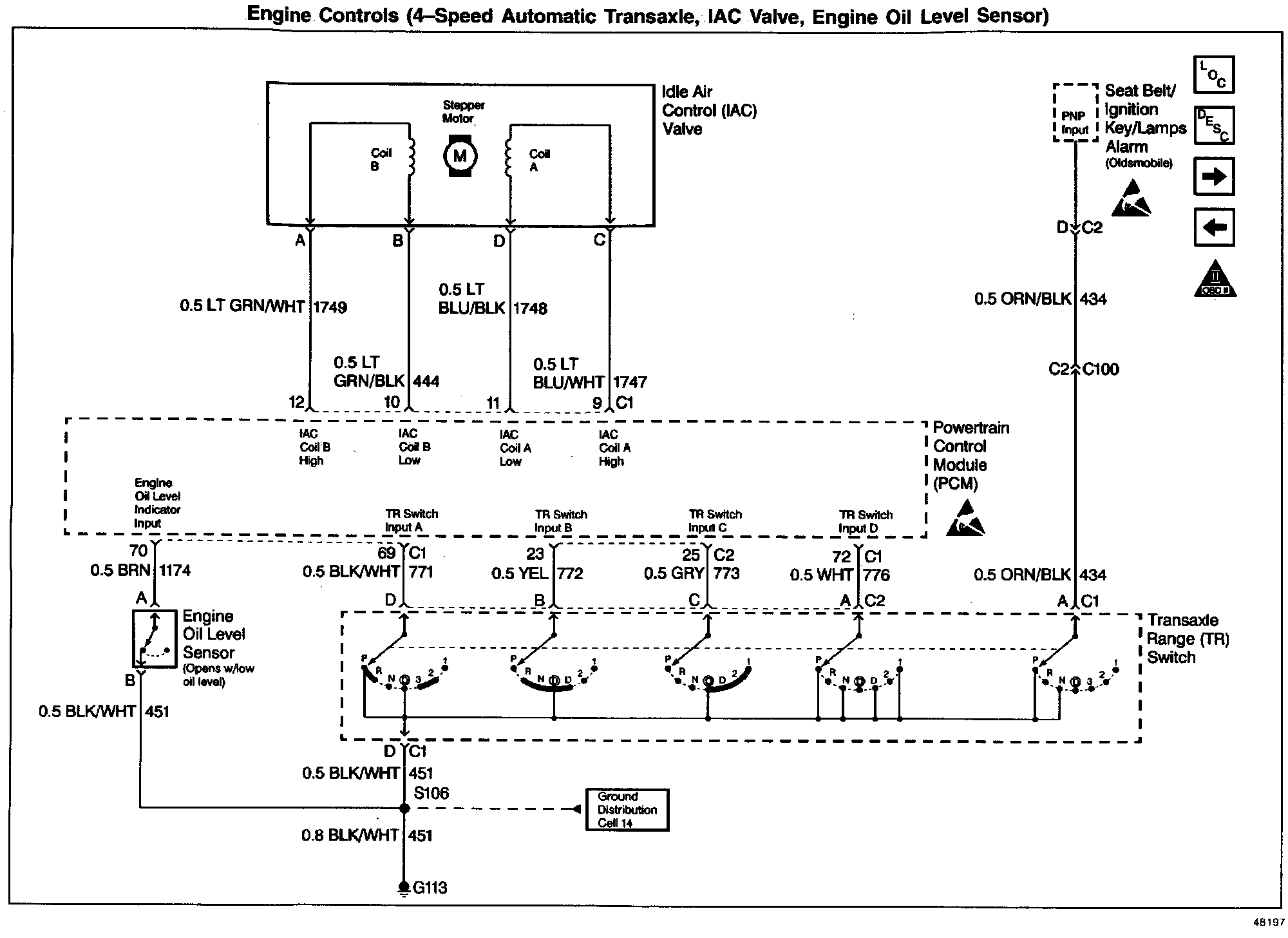

Wiring Diagram:
